Window Glass Installation

CAUTION: Do not apply primer on the adhesion surface, as adhesion may be reduced.

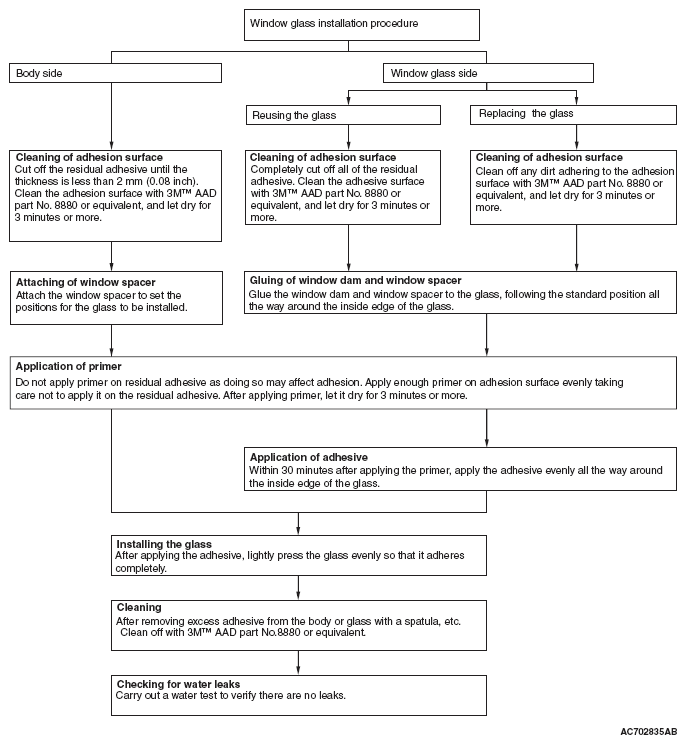

Fig 1: Window Glass Installation Procedure Flow Chart
G05432854Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
