Body
>>
Splash Shield
>>
Removal And Installation
Removal And Installation

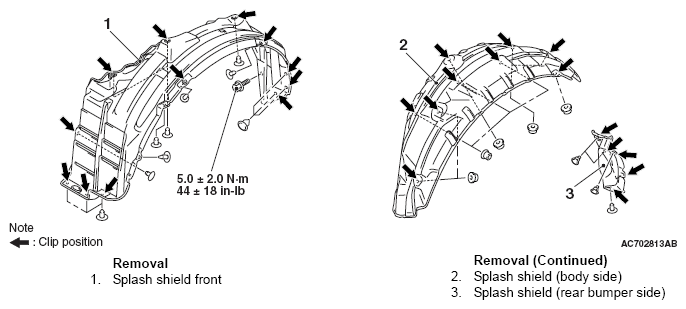

Fig 1: Splash Shield Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
