Home >> Mitsubishi >> 2009 >> Outlander XLS, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Body >> Fender >> Removal And Installation >> Notes

Removal And Installation: Notes

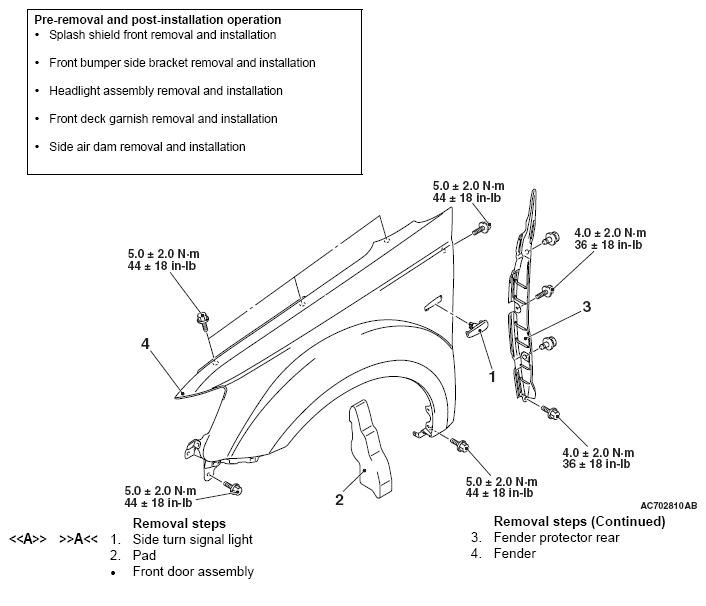

Fig 1: Fender Replacement Components With Torque Specifications

G05432848

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
