Shift Lock Link

Check each part for damage and disengagement.

Check that the lock lever smoothly moves in the direction of arrow B in the figure when the shift lock solenoid plunger is pressed in the direction of arrow A, and smoothly moves back to the original position when the plunger is released.

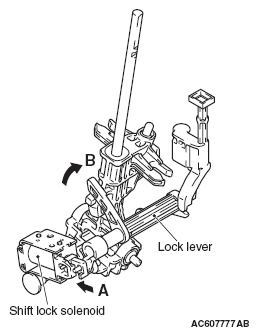

Fig 1: Checking Shift Lock Link
G05431363Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
