DTC P1723: Abnormality In Speed Sensor System Function: Notes

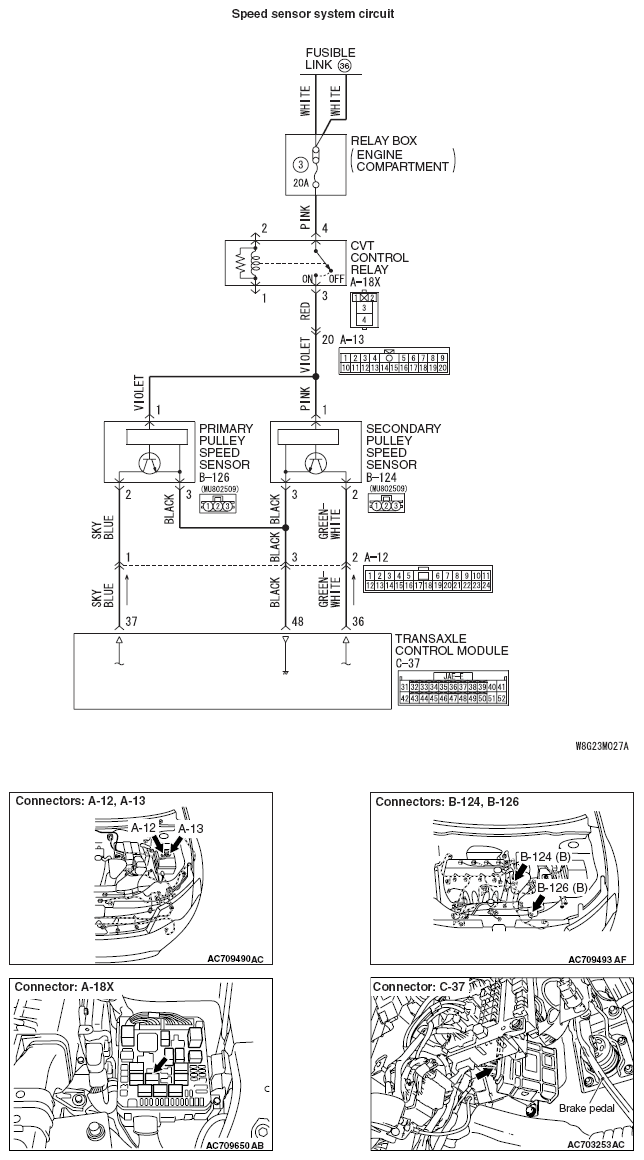

Fig 1: Speed Sensor System Circuit Diagram

G05431319

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
