Disassembly And Assembly: Notes

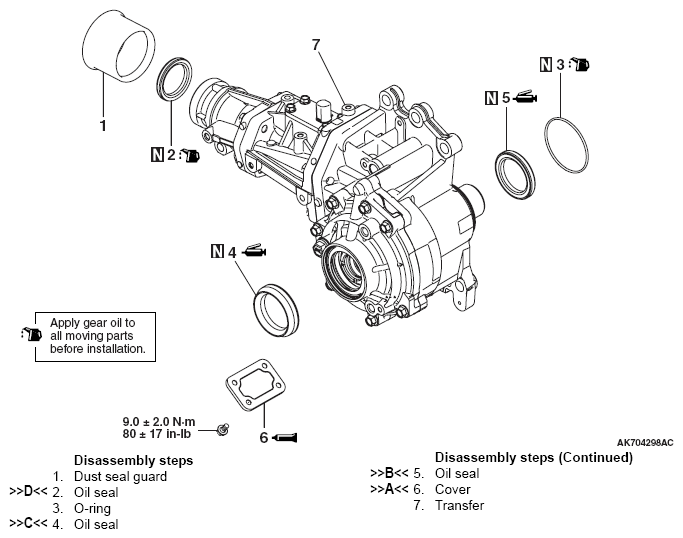

Fig 1: Identifying Transfer Assembly Components
G05431626Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:
