Disassembly And Assembly: Notes

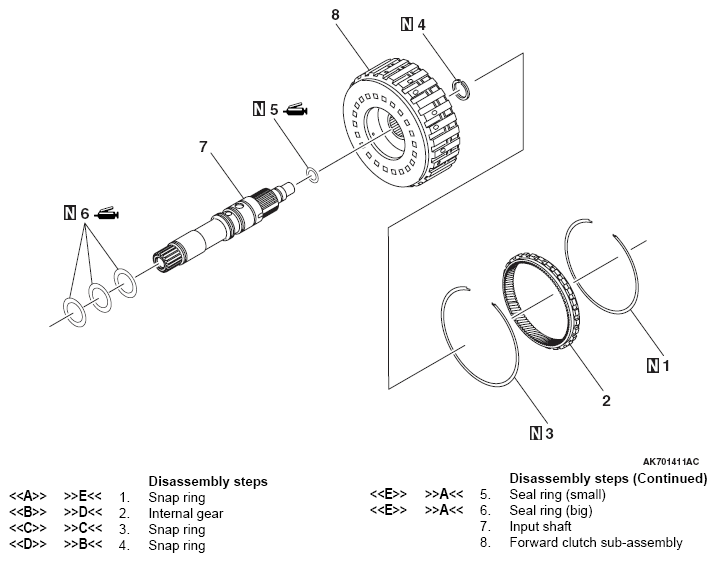

Fig 1: Exploded View Of Forward Clutch Components

G05431594

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
