LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mitsubishi
>>
2009
>>
Outlander ES, AWD
>>
Repair and Diagnosis
>>
Suspension
>>
Wheel Alignment
>>
Rear Suspension
>>
Stabilizer Bar
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

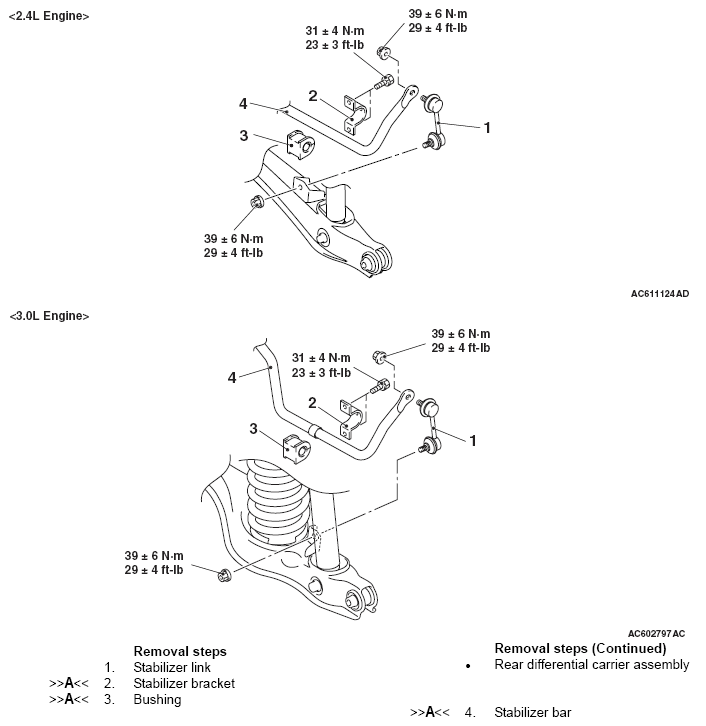

Fig 1: Stabilizer Bar Replacement Components With Torque Specifications - 2.4L & 3.0L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
