Removal And Installation: Notes

CAUTION:

The parts indicated by ^*1 should be temporarily tightened, and then fully tightened with the vehicle standing on the ground and the curb weight condition.
The parts indicated by ^*2 are the bolts/nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

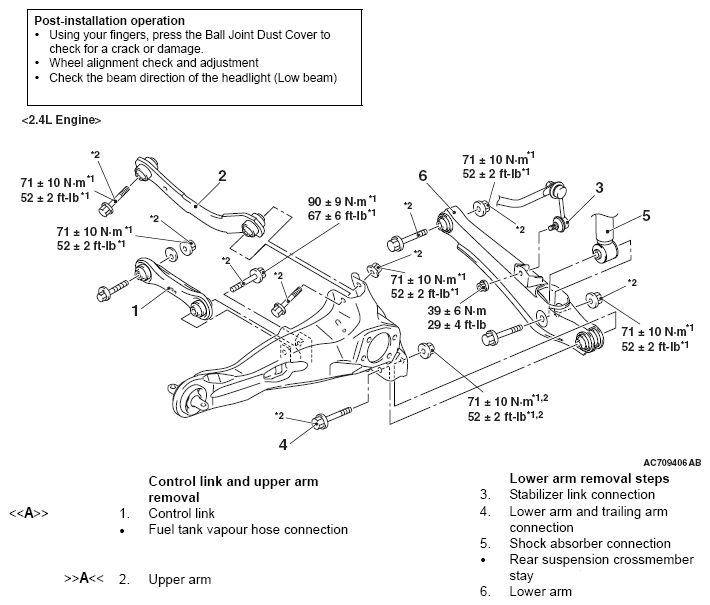

Fig 1: Control Link, Upper Arm And Lower Arm Replacement Components With Torque Specifications (2.4L Engine: 5 Persons Seat)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

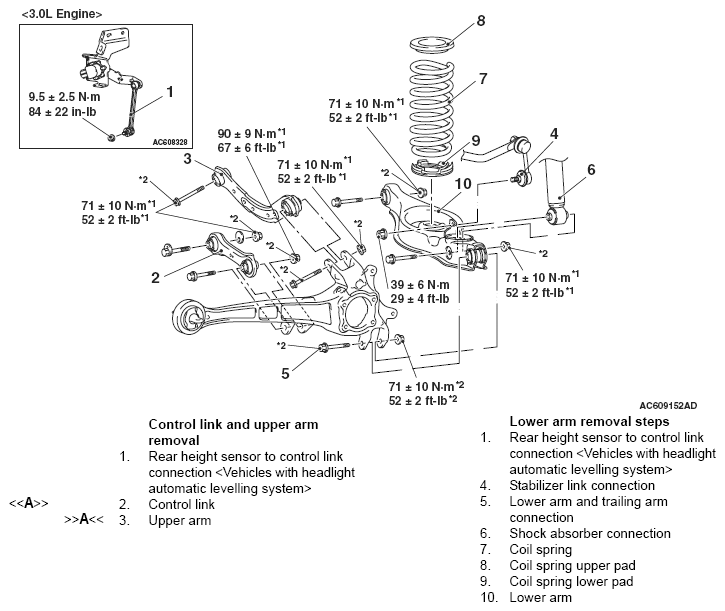

Fig 2: Control Link, Upper Arm And Lower Arm Replacement Components With Torque Specifications (2.4L Engine: 7 Persons Seat, 3.0L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
