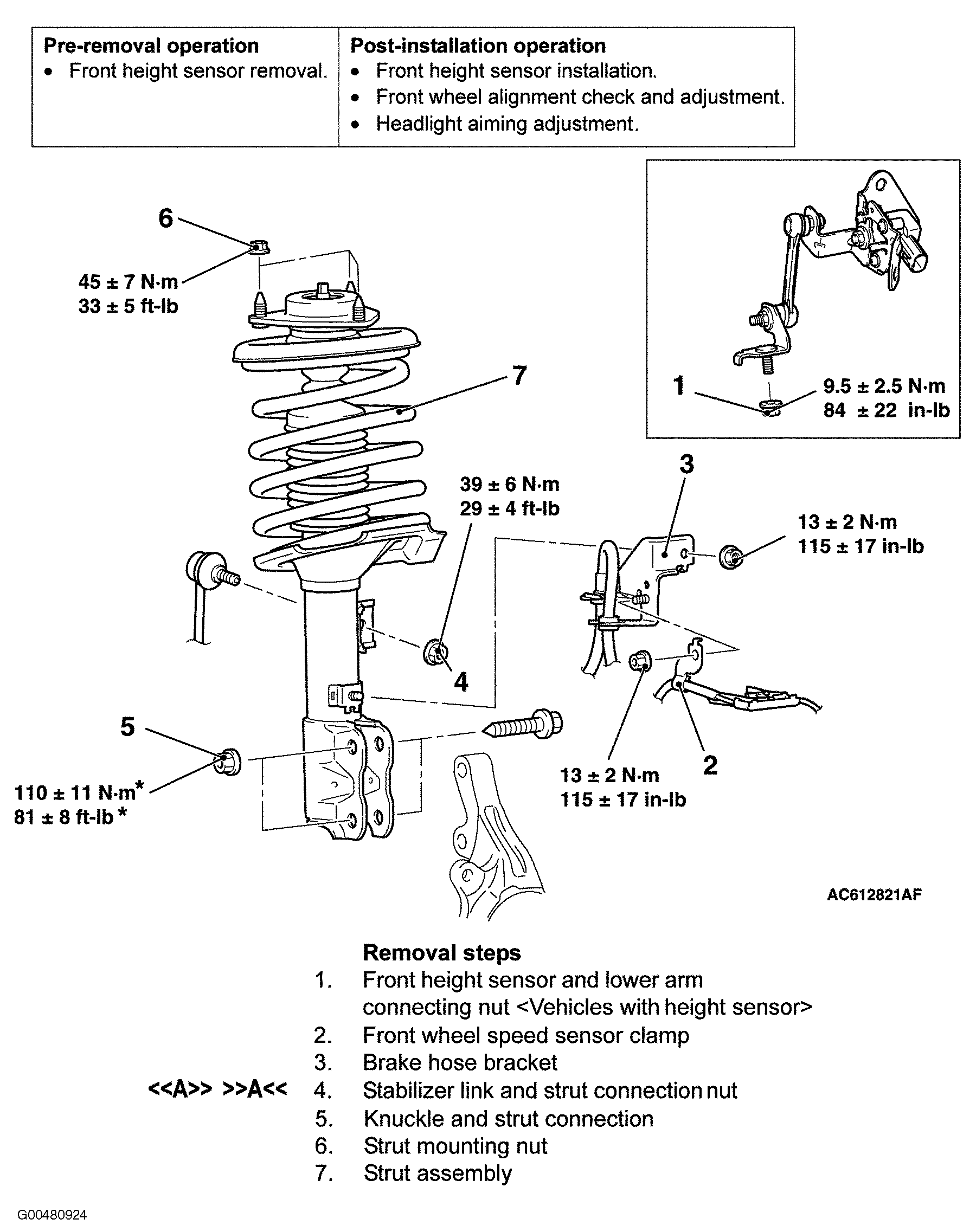

Removal And Installation: Notes
CAUTION:
- As for vehicles with headlamp auto levelling system, disconnect the height sensor from the lower arm before operation to prevent damages to the height sensor. Refer to HEIGHT SENSOR .
- The part indicated by * is the nut with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten it to the specified torque.
