Removal And Installation

CAUTION: To remove the front seat assembly of vehicle with side air bag, refer to SERVICE PRECAUTIONS and CURTAIN AIR BAG MODULE .

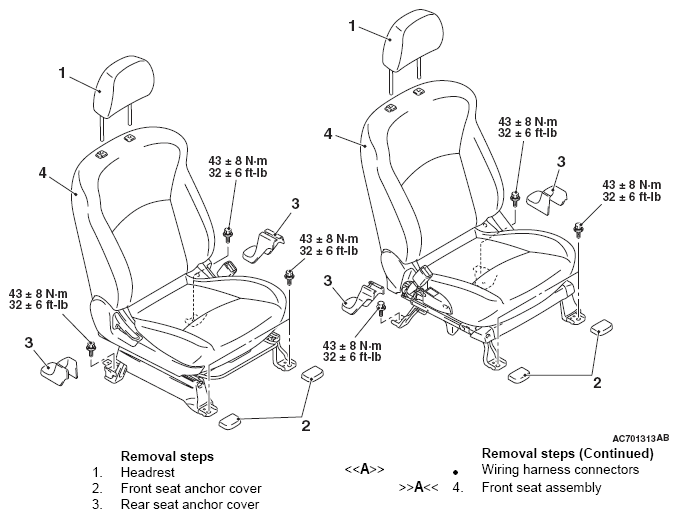

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications
G05433443Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
