Removal And Installation: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before installing the roof drip molding, the windshield adhesive remained on the clip installation points should be removed 3 to 5 mm(0.12 to 0.20 in) from the edge of the glass. However, if the windshield adhesive has not been cured yet, it is not necessary to remove it.

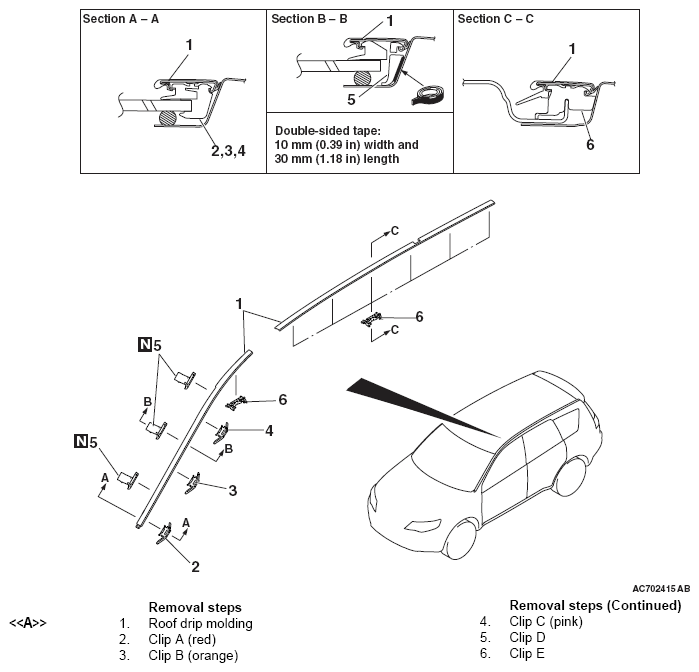

Fig 1: Identifying Roof Drip Molding Components
G05433319Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
