Section 39 (Keyless Operation System (Kos))
>>
General Information
>>
System configuration
System configuration
WARNING:
This page is about a different car, the 2008 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

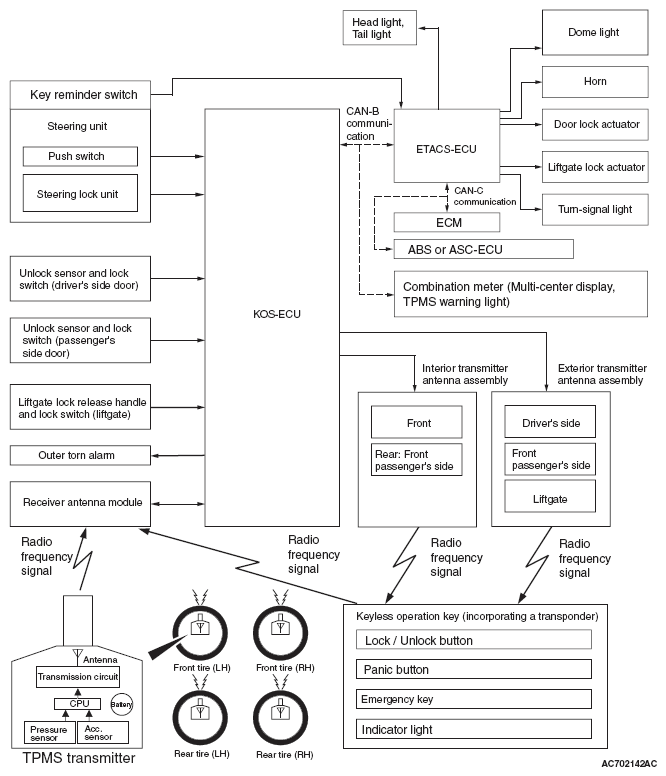

Fig 1: Keyless Operation System (KOS) - System Configuration
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
