Removal And Installation: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

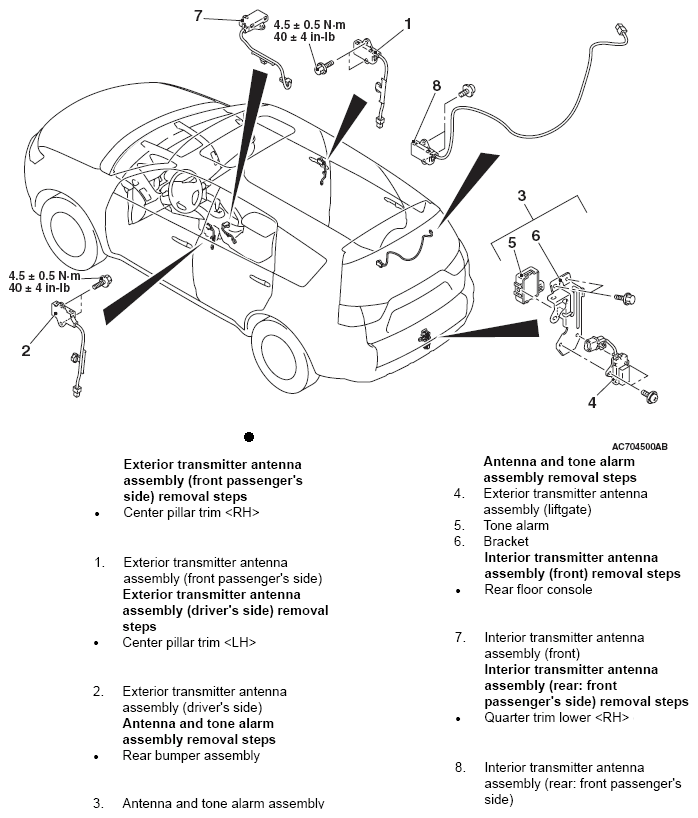

Fig 1: Exterior Transmitter Antenna Assembly, Interior Transmitter Antenna Assembly And Receiver Antenna Module With Torque Specifications (1 Of 2)
G05433207Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

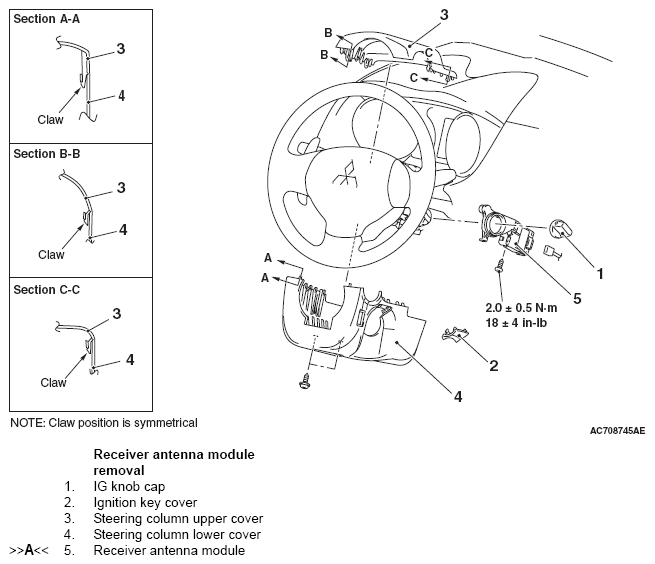

Fig 2: Exterior Transmitter Antenna Assembly, Interior Transmitter Antenna Assembly And Receiver Antenna Module With Torque Specifications (2 Of 2)
G05433208Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
