Inspection Procedure 17: The Keyless Operation Key Cannot Be Registered Using Scan Tool.: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: When replacing the ECU, always check that the communication circuit is normal.

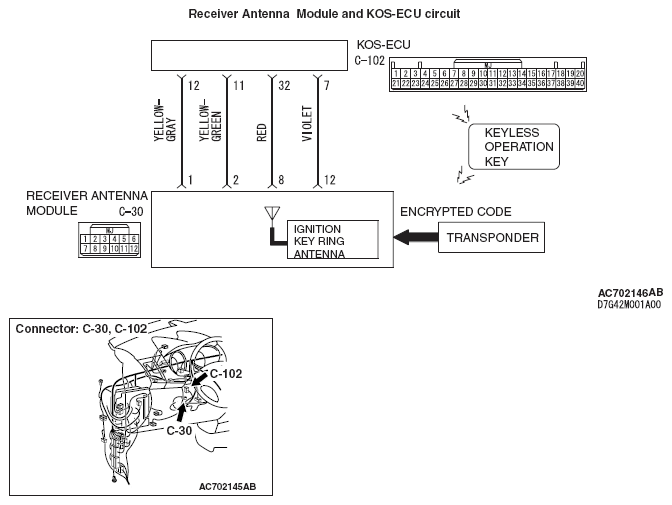

Fig 1: Receiver Antenna Module And KOS-ECU Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
