Inspection Procedure 13: Keyless Entry System Does Not Work.: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

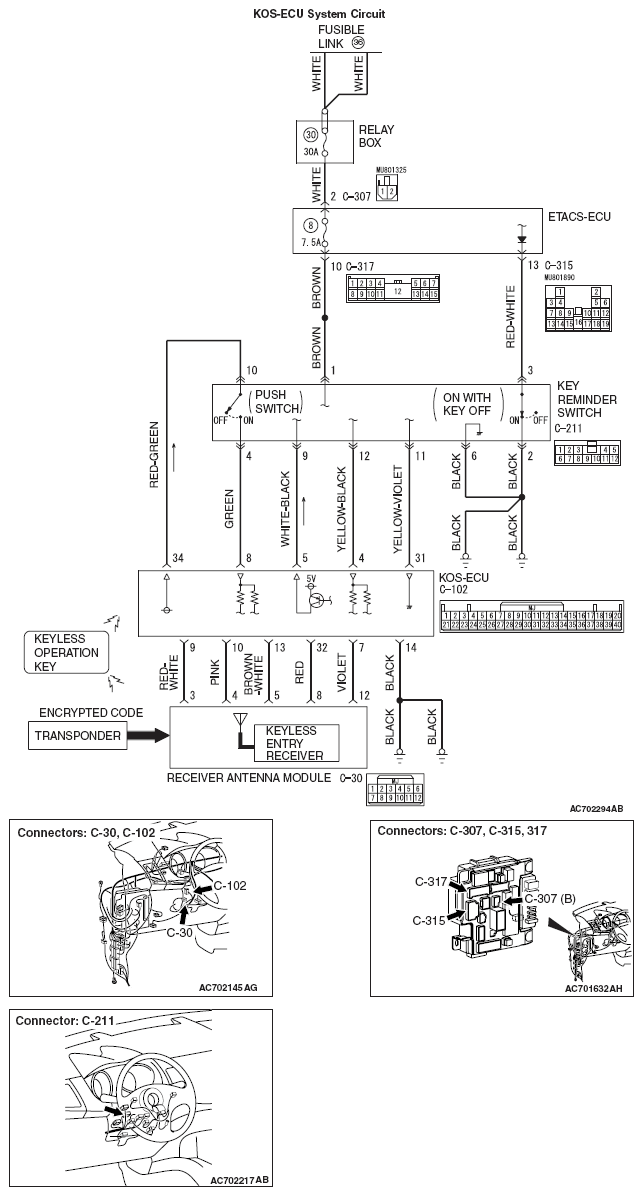

Fig 1: KOS-ECU System Circuit Diagram
G05433173Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
