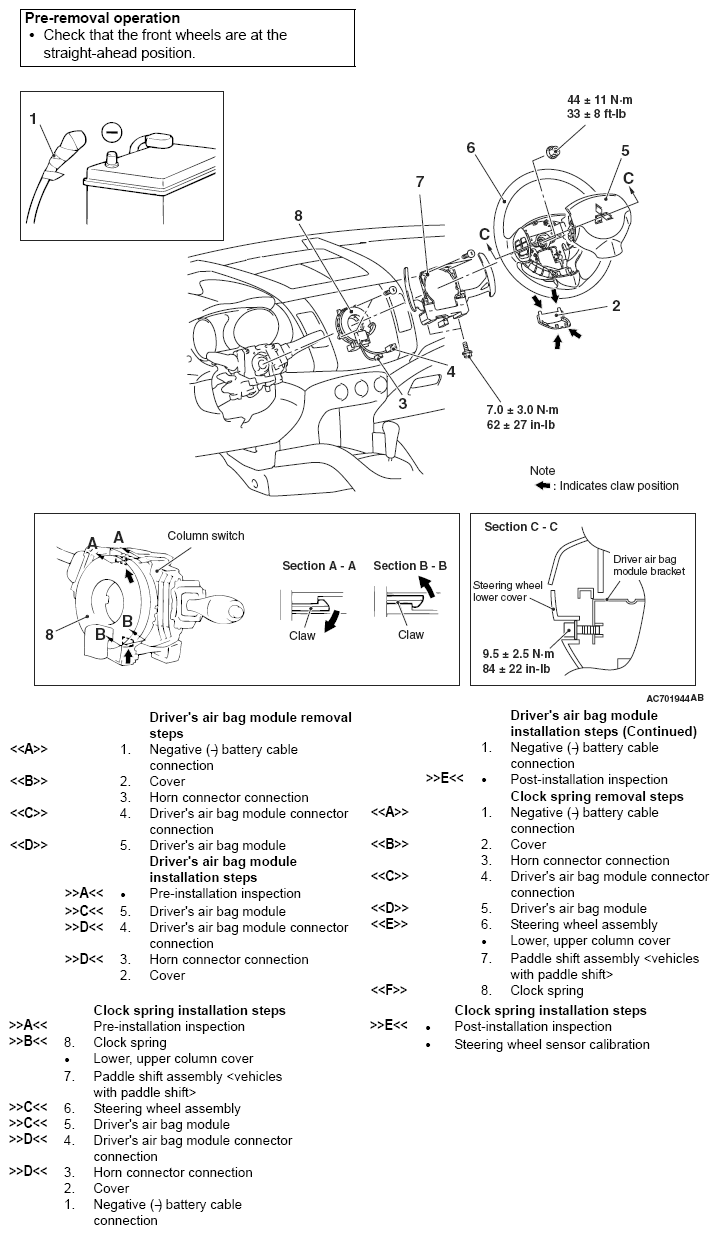

Driver's Air Bag Module And Clock Spring
WARNING: This page is about a different car, the 2008 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
On vehicles with ASC, always carry out steering wheel sensor calibration after the clock spring has been installed (Refer to
STEERING WHEEL SENSOR CALIBRATION
). This is necessary because the ASC-ECU should update the steering neutral point.
Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface(V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A
- MB992006: Extra Fine Probe
- MB990803: Steering Wheel Puller
