Home
>>
Mitsubishi
>>
2009
>>
Outlander ES, AWD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Electronic Control - 4WD
>>
Electronic Control Coupling
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

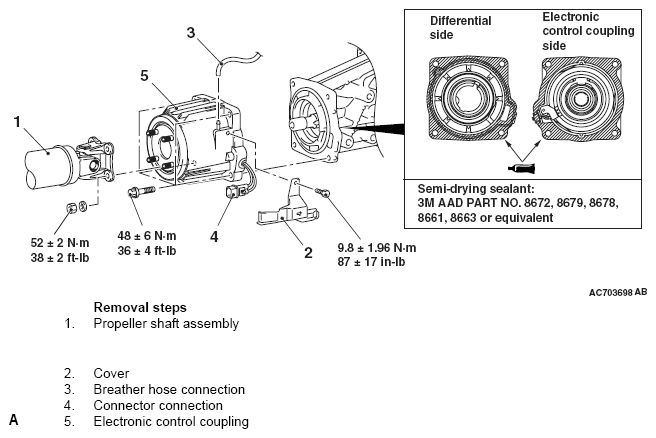

Fig 1: Electronic Control Coupling Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
