Liftgate Window Glass
>>
Removal And Installation
Removal And Installation

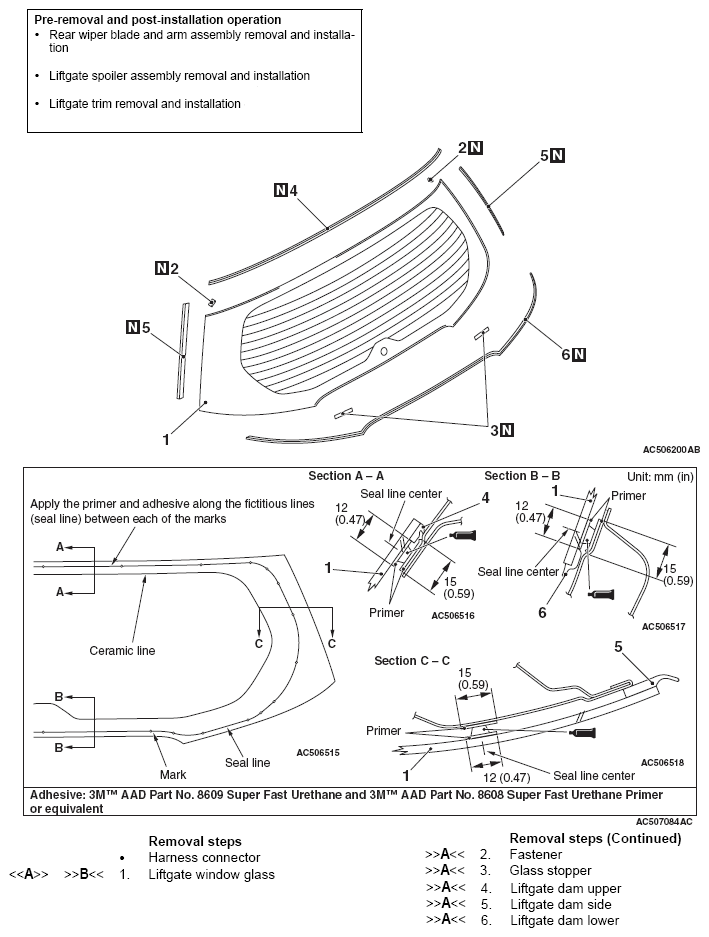

Fig 1: Identifying Liftgate Window Glass Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
