Disassembly And Assembly: Notes

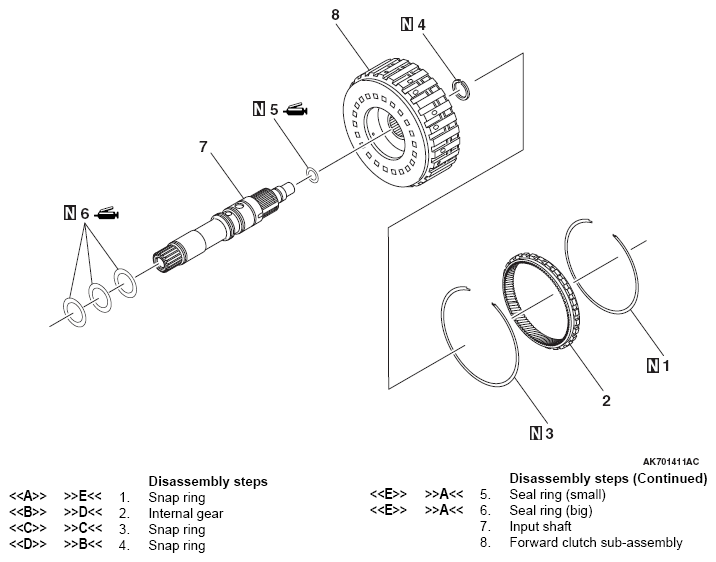

Fig 1: Identifying Forward Clutch Assembly

G05904199

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
