Disassembly And Assembly: Notes

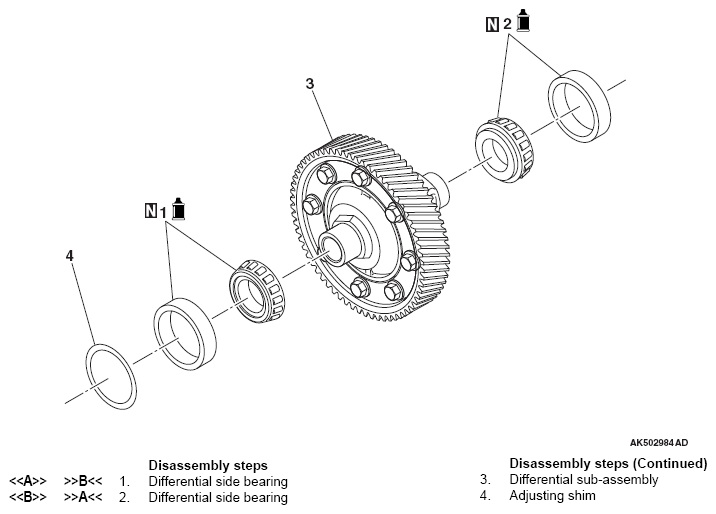

Fig 1: Identifying Differential Assembly Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:

• MB990810: Side bearing puller
• MB991452: Oil seal installer
• MB992138: Bearing Installer
• MD998812: Installer Cap
• MD998813: Installer-100
• MD998823: Installer adapter (48)
