Differential Sub-Assembly: Assembly: Notes

CAUTION: The differential sub-assembly can only be assembled, not disassembled.

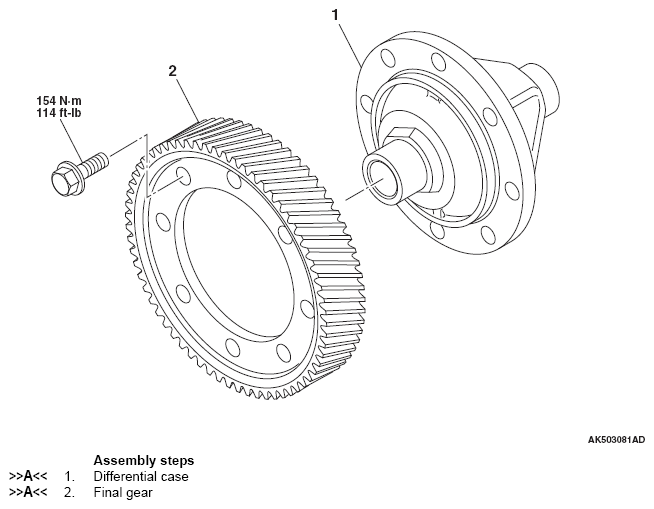

Fig 1: Differential Case And Final Gear With Torque Specifications
G05904226Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
