Home >> Mitsubishi >> 2009 >> Lancer GTS, Automatic CVT >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Headlining >> Removal And Installation >> Notes

Removal And Installation: Notes

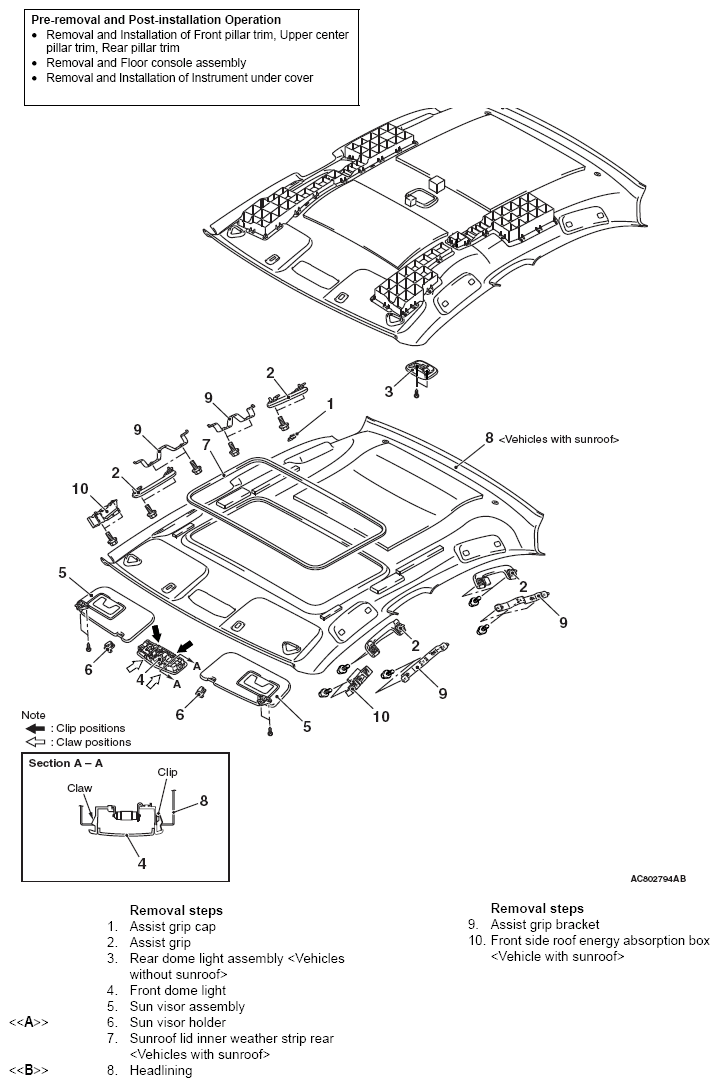

Fig 1: Exploded View Of Headlining
G05905548Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
