Removal And Installation: Notes

CAUTION: Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and SIDE-AIRBAG MODULE (S) <Except for RALLIART>, or SIDE-AIRBAG MODULES <RALLIART> .

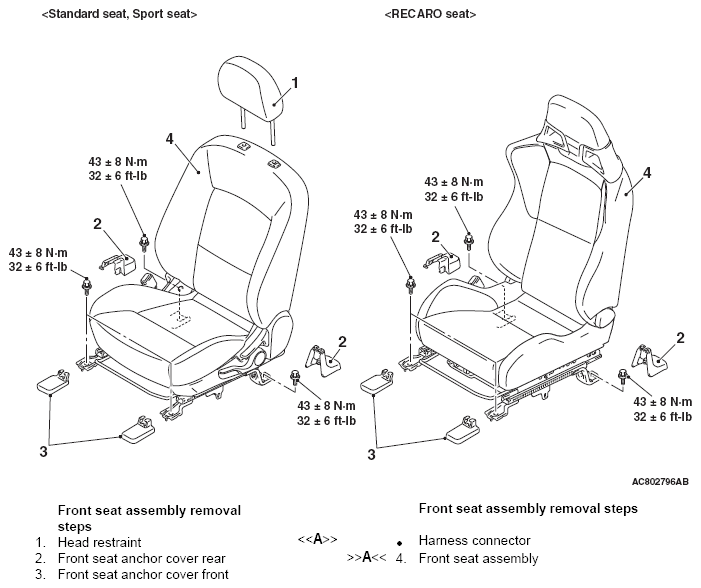

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications
G05905552Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
