Notes
Removal And Installation: Notes

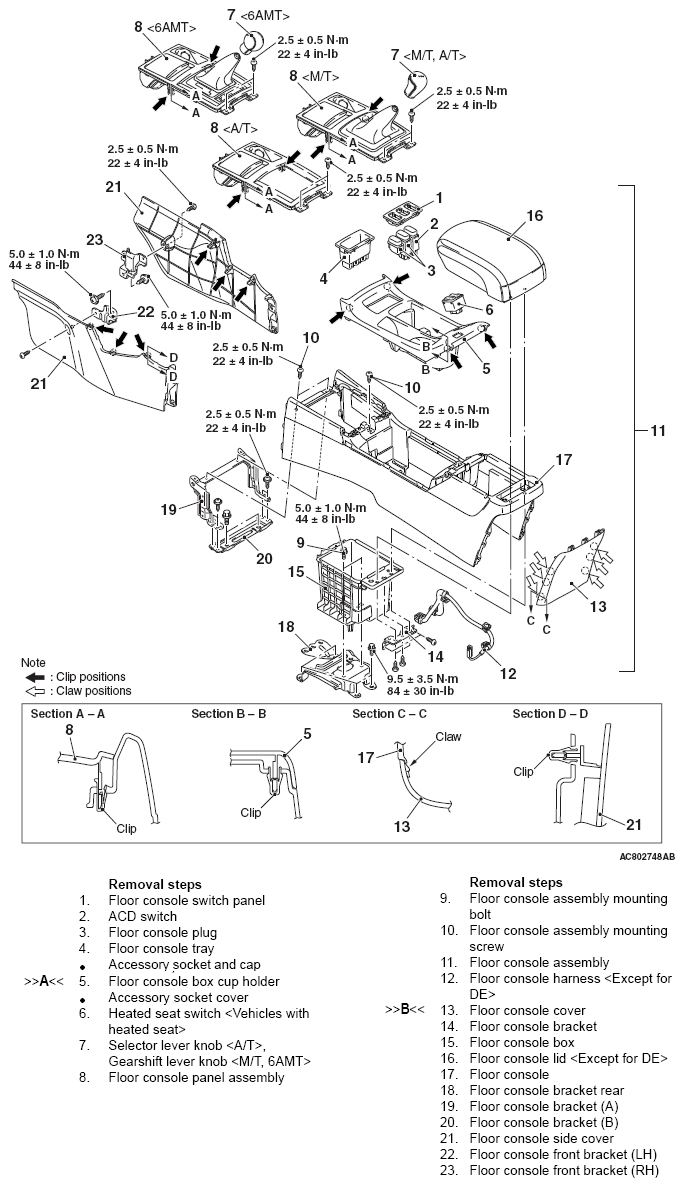

Fig 1: Exploded View Of Floor Console Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
