(2.0L Turbo Engine)
ENGINE SPECIFICATIONS
| Item | CY4AS | ||
|---|---|---|---|
| MUFZL2M/3M | |||

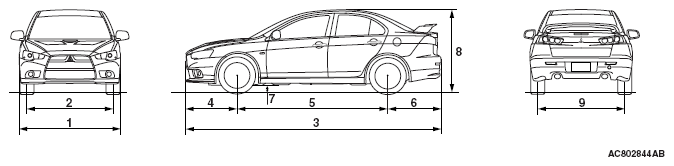

| Vehicle dimension mm (in) | Overall width | 1 | 1,760 (69.4) |
| Tread-front | 2 | 1,530 (60.2) | |
| Overall length | 3 | 4,570 (180.0) | |
| Overhang-front | 4 | 955 (37.6) | |
| Wheelbase | 5 | 2,635 (103.7) | |
| Overhang-rear | 6 | 980 (38.7) | |
| Ground clearance | 7 | 147 (5.8) | |
| Overall height (unladen) | 8 | 1,490 (58.7) | |
| Tread-rear | 9 | 1,530 (60.2) | |
| Vehicle weight kg (lb) | Curb weight | 1,570 (3,462) | |
| Gross vehicle weight rating | 1,990 (4,388) | ||
| Gross axle weight rating-front | 1,080 (2,381) | ||
| Gross axle weight rating-rear | 980 (2,161) | ||
| Seating capacity | 5 | ||
| Engine | Model No. | 4B11 with Intercooler, Turbocharger | |
| Piston displacement cm3 (cu in) | 1,998 (121.9) | ||
| Maximum output kW/r/min (HP/r/min) | 177/6,000 (237/6,000) | ||
| Maximum torque N.m/r/min (ft-lb/r/min) | 343/2,500 (253/2,500) | ||
| Fuel system | Fuel supply system | MFI | |
| Transaxle | Model No. | W6DGA | |
| Type | TC-SST | ||
| Turning radius m (ft) | 5.0 (16.4) | ||
