Disassembly And Assembly (2.0L Engine Turbo): Notes

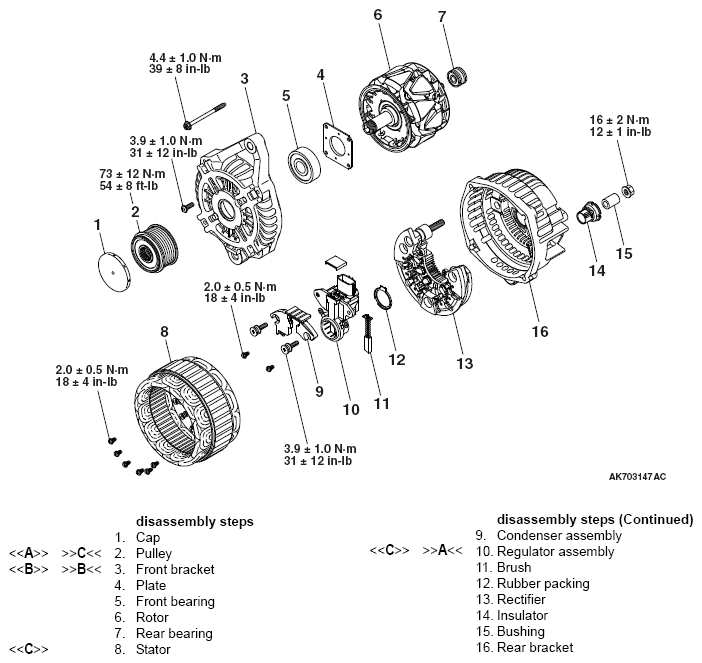

Fig 1: Exploded View Of Alternator - 2.0L Engine Turbo With Torque Specifications
G05903646Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
