Home >> Mitsubishi >> 2009 >> Lancer GTS, Automatic CVT >> Repair and Diagnosis >> Body & Frame >> Windows >> Body >> Fender >> Removal And Installation >> Notes

Removal And Installation: Notes

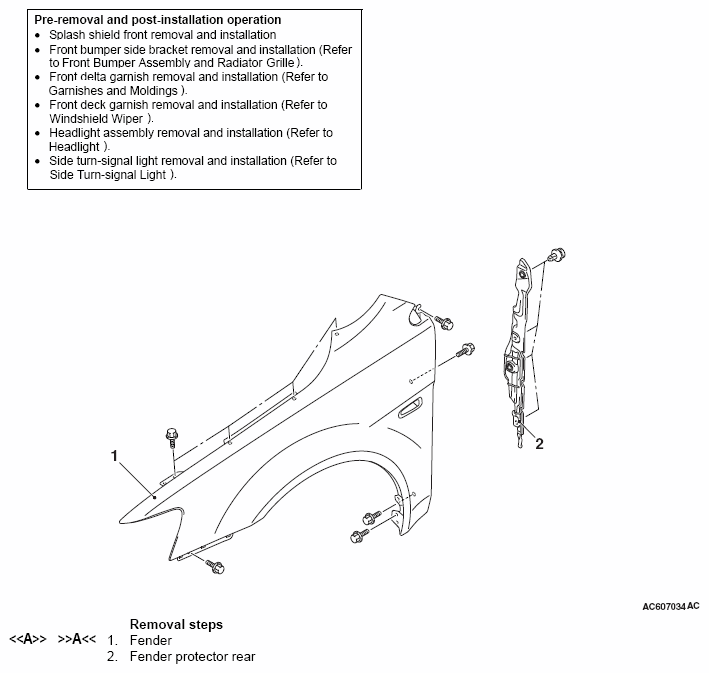

Fig 1: Identifying Fender Remove/Install Components

G05905099

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
