Disassembly And Assembly: Notes

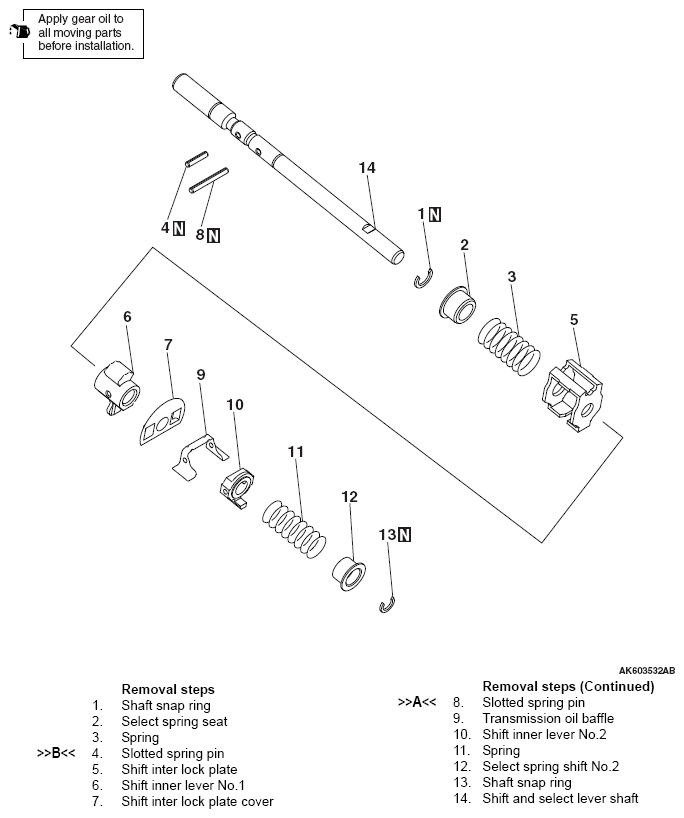

Fig 1: Exploded View Of Select Lever

G05900829

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
