>>B<< Steering Column Bolt (Steering Column Shaft Assembly And Steering Gear & Linkage Connection) Installation

  1. While sliding shaft A from shaft B with the clip claw as shown in the figure being pinched, connect the steering column shaft assembly and the steering gear and linkage.
  2. Insert the steering column bolt from the no tapped bolt hole, and tighten it to the specified torque.

    Tightening torque : 20 ± 5 N.m (15 ± 3 ft-lb)

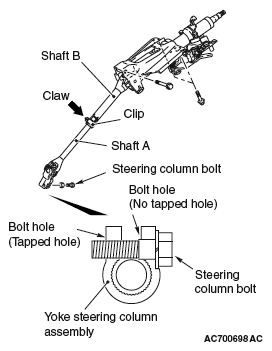

    Fig 1: Identifying Steering Column Bolt, Shaft, Clip, Claws, Bolt Hole And Yoke Steering Column Assembly
    G05394799Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
