Home >> Mitsubishi >> 2009 >> Lancer ES, Standard >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Front Seat Belt >> Removal And Installation >> Notes

Removal And Installation: Notes

CAUTION: SRS: Before removing and installing the seat belts with pretensioner, refer to SRS SERVICE PRECAUTIONS and SEAT BELT WITH PRE-TENSIONER .

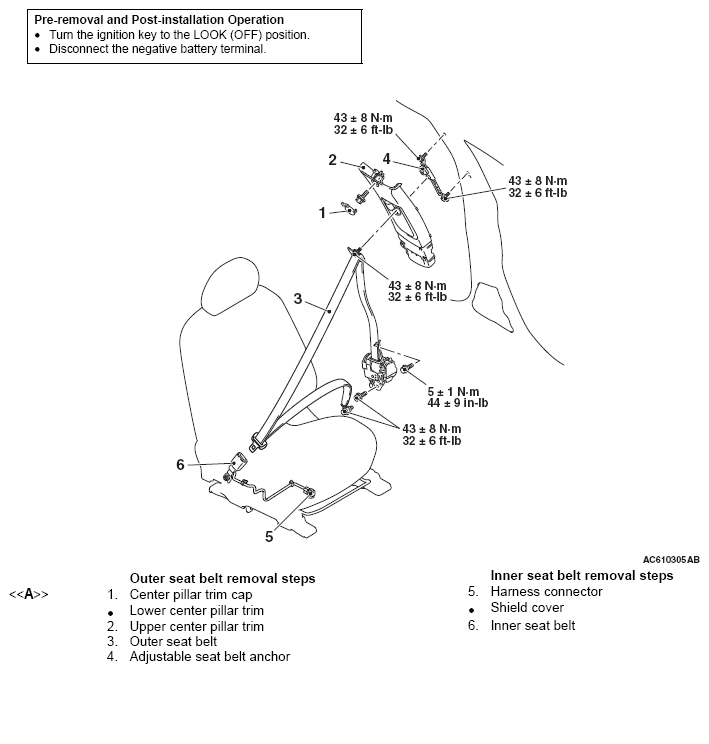

Fig 1: Front Seat Belt Replacement Components With Torque Specifications
G05905572Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
