Other Devices

OTHER DEVICES REFERENCE CHART

Name	Symbol	Name	Symbol
A/C compressor clutch assembly (incorporating A/C refrigerant temperature switch)	B	Power steering pressure switch	A

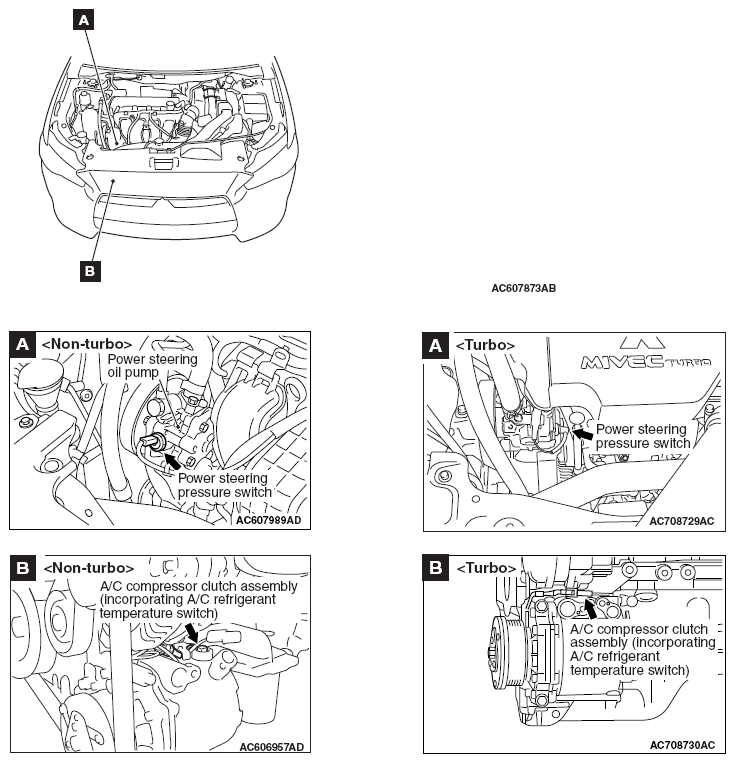

Fig 1: Power Steering Pressure Switch And A/C Compressor Assembly Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
