Dash Panel

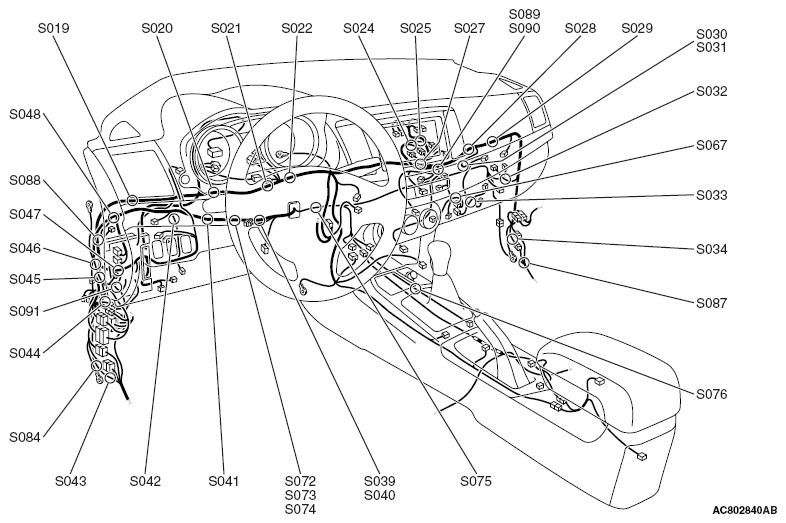

Fig 1: Dash Panel Splice Locations

G07545699

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
