Removal And Installation: Notes

Fig 1: Identifying Rear Window Glass Remove/Install Components (1 Of 2)
G05394855Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

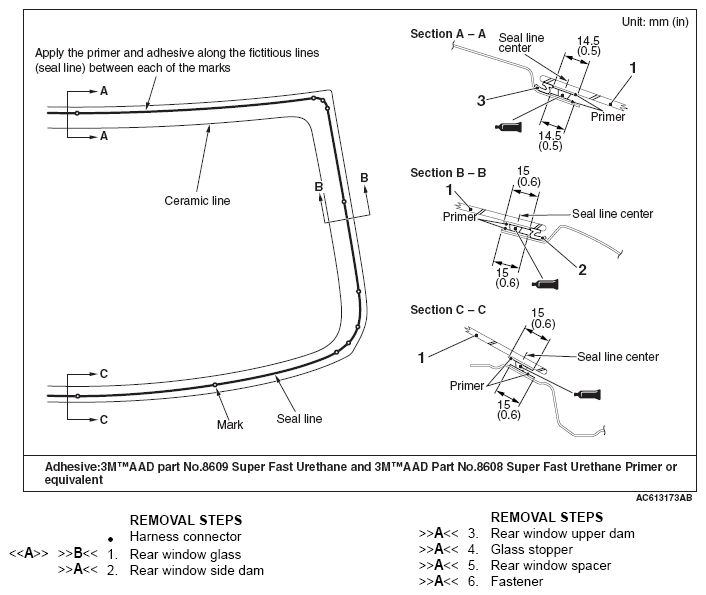

Fig 2: Identifying Rear Window Glass Remove/Install Components (2 Of 2)
G05905119Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
