General Information

The steering wheel has three spokes. All vehicles are equipped with SRS (Supplemental Restraint System).
The steering column has a shock absorbing mechanism and a tilt steering mechanism.
The steering system uses a vane oil pump with a fluid flow control system, so that steering effort varies with engine speed.

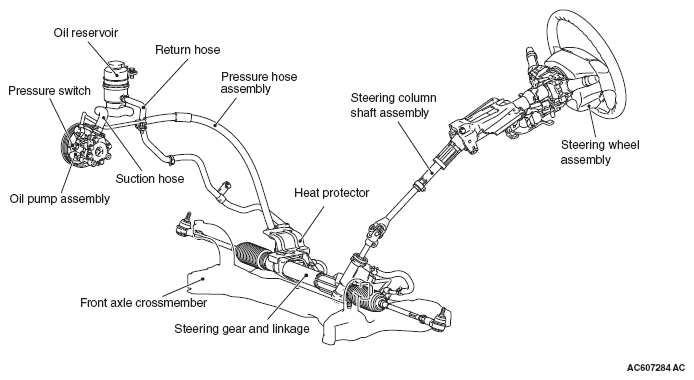

Fig 1: Identifying Power Steering Components (Except 2.0L-Turbo Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

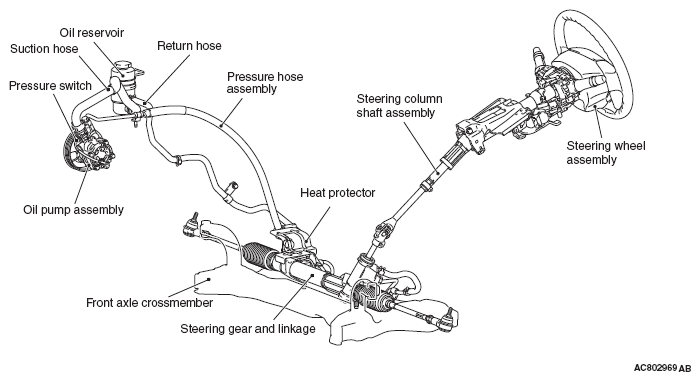

Fig 2: Identifying Power Steering Components (2.0L-Turbo Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
