Removal And Installation < 3.8L Engine>: Notes

CAUTION: When the knock sensor replacement is performed, use scan tool MB991958 to initialize the learning value (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE ).

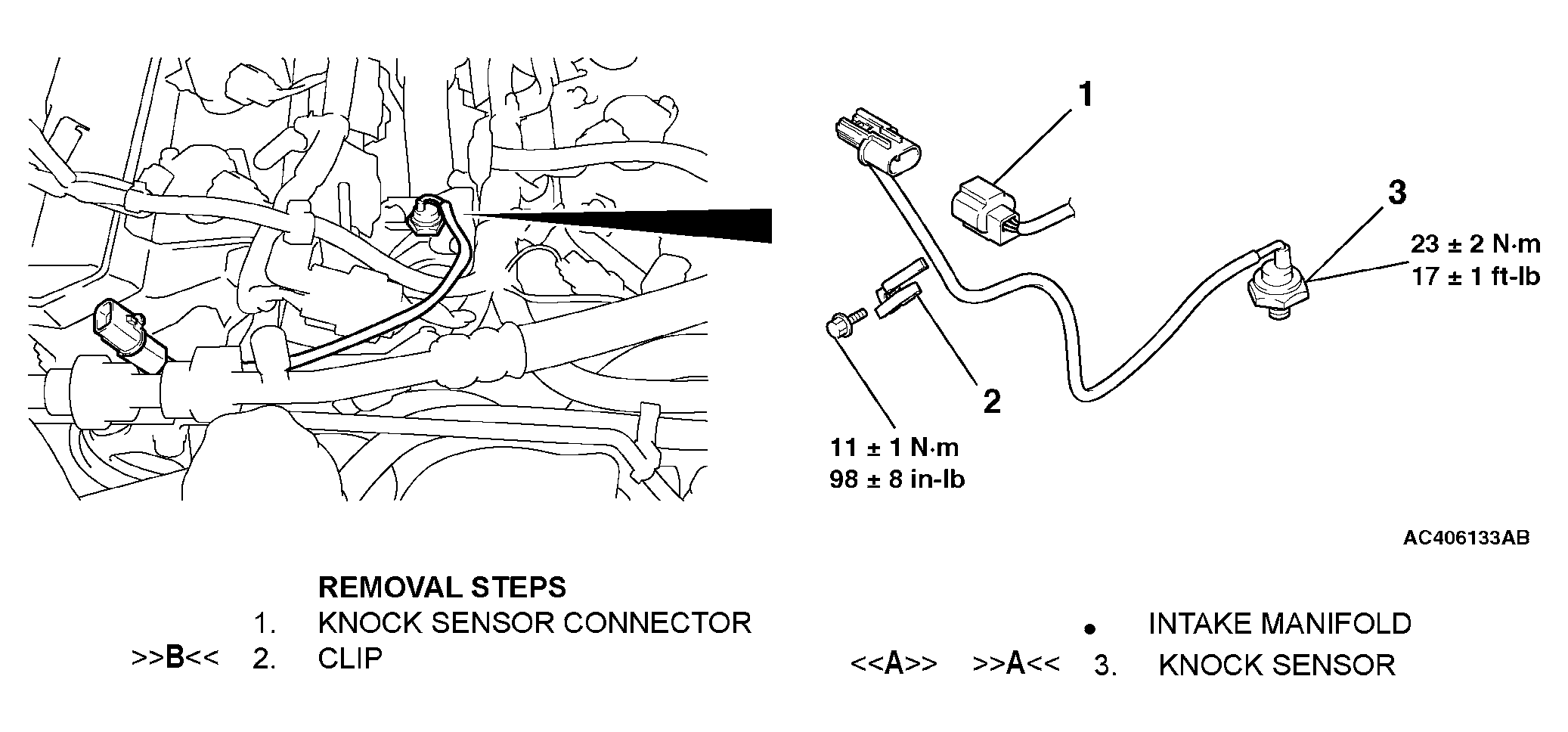

Fig 1: Removing/Installing Knock Sensor With Torque Specifications (3.8L Except MIVEC)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Removing/Installing Knock Sensor With Torque Specifications (3.8L MIVEC)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

MD998773: Knock Sensor Wrench
