Removal And Installation <3.8L Engine-MIVEC>: Notes

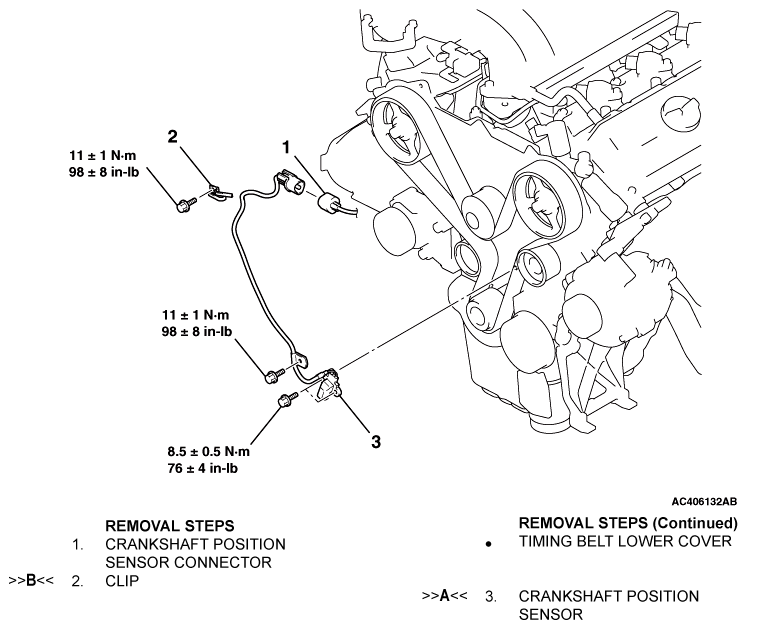

Fig 1: Crankshaft Position Sensor & Timing Belt Lower Cover Bracket With Torque Specifications (3.8L)

G06248713

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
