DTC C1205: Fl Wheel SPD. SNSR. Malfunction: Notes

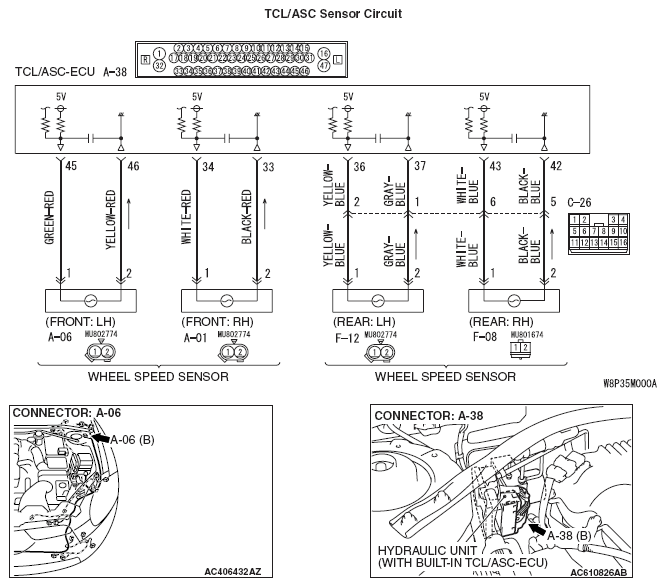

Fig 1: TCL/ASC Sensor Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Diagnose the CAN bus lines before the DTC. Refer to CONTROLLER AREA NETWORK (CAN) .
