Removal And Installation: Notes

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.

Post-installation Operation

Press the dust cover with your finger to check that there are no cracks or damage in the dust cover.
Rear Wheel Alignment Check and Adjustment (Refer to REAR WHEEL ALIGNMENT CHECK AND ADJUSTMENT ).

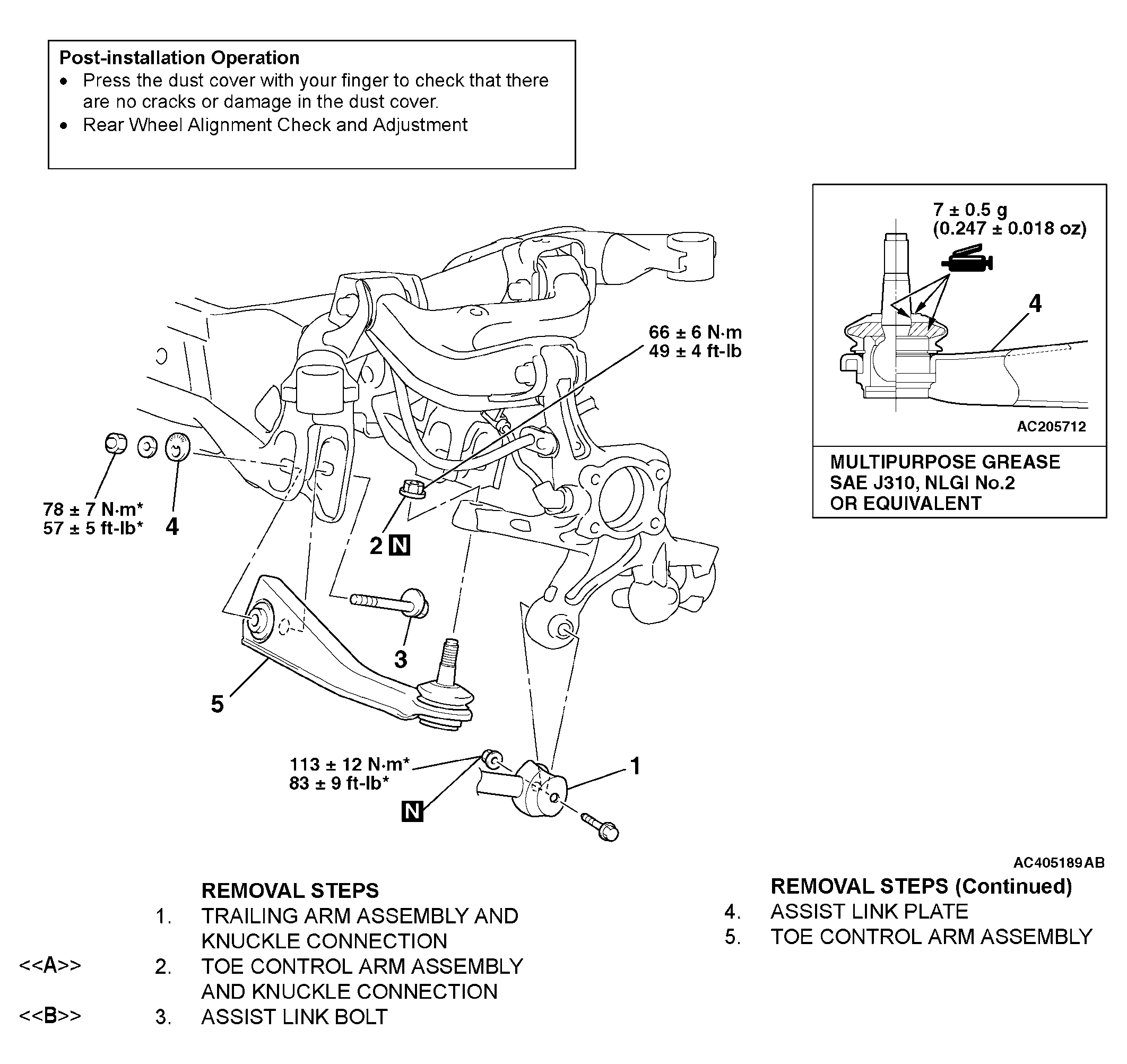

Fig 1: Toe Control Arm With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
