Toe Control Arm Ball Joint Dust Cover Check

Check the toe control arm ball joint dust cover for cracks or damage by pushing it with your finger.
If the dust cover is cracked or damaged, replace the toe control arm assembly.
NOTE: Cracks or damage of the dust cover may cause damage to the ball joint. When it is damaged during service work, replace the dust cover.

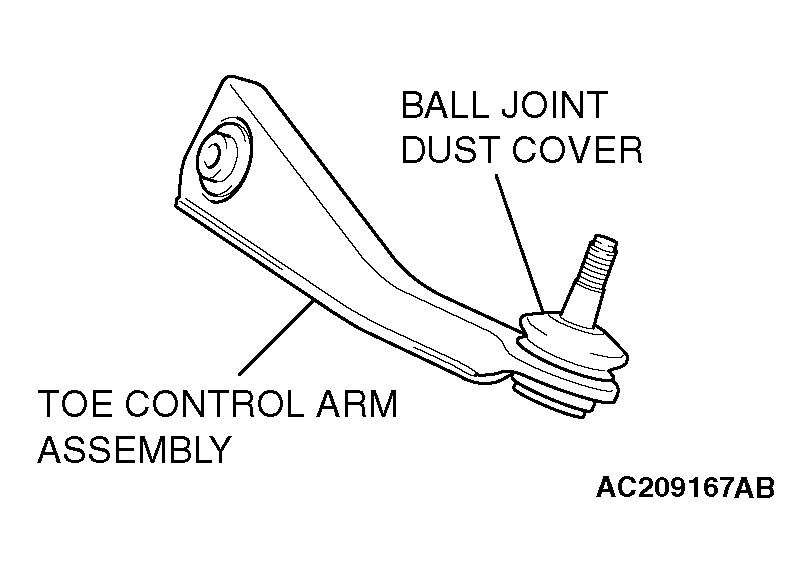

Fig 1: Checking Toe Control Arm Ball Joint Dust Cover For Cracks Or Damage
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
