Home >> Mitsubishi >> 2009 >> Eclipse GT, Automatic >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Rear Suspension >> Shock Absorber Assembly >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

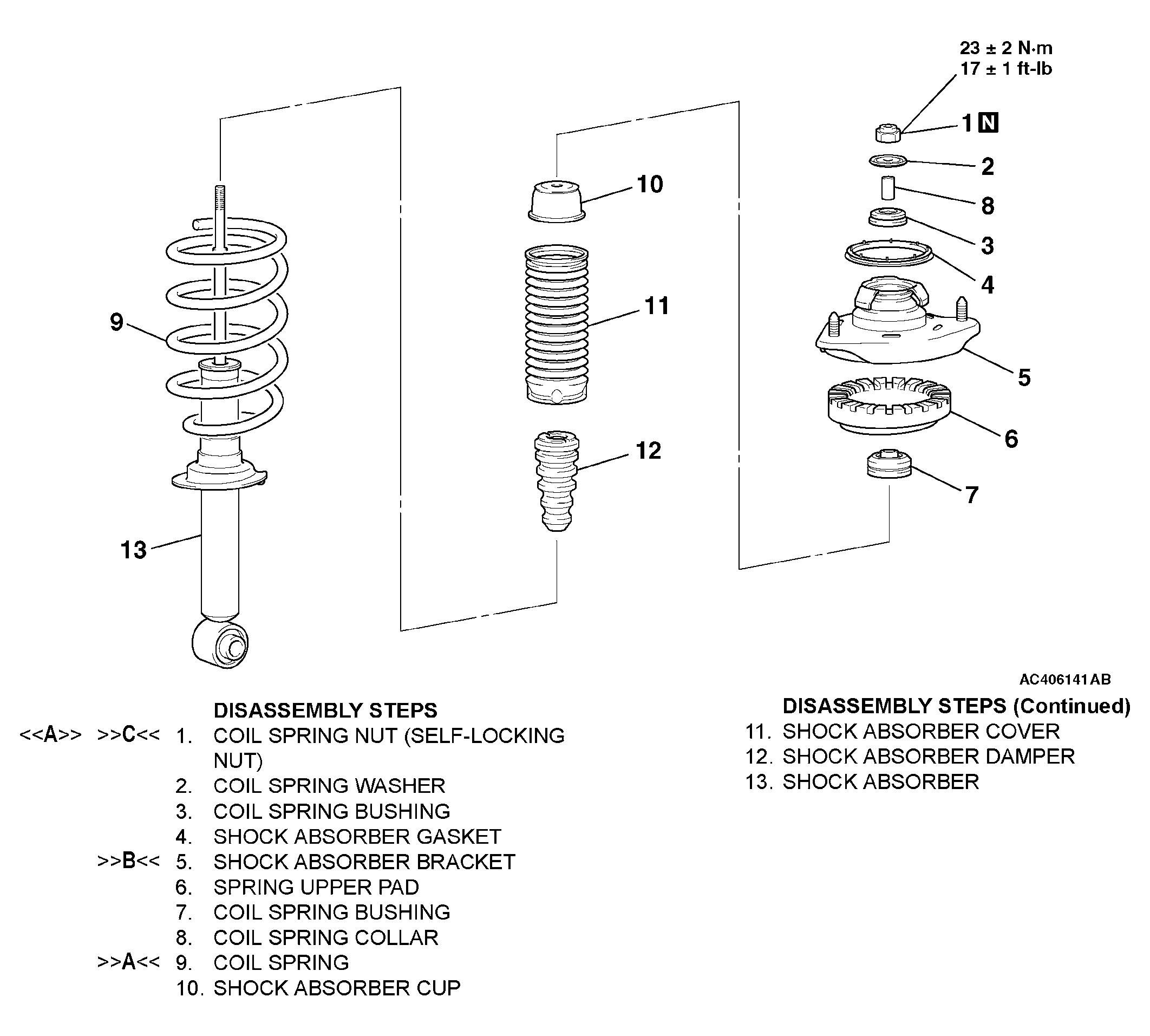

Fig 1: Shock Absorber Assembly With Torque Specifications

G04231889

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
