Special Tools

SPECIAL TOOLS CHART

TOOL NUMBER AND NAME	SUPERSESSION	APPLICATION
MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 MUT-III Sub Assembly Vehicle Communication Interface (V.C.I.) MUT-III USB Cable MUT-III Main Harness A (Vehicles with CAN communication system) MUT-III Main Harness B (Vehicles without CAN communication system) MUT-III Main Harness C (for DaimlerChrysler models only) MUT-III Adapter Harness MUT-III Trigger Harness	MB991824-KIT NOTE: MB991826 MUT-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	Checking diagnostic trouble codes CAUTION: For vehicles with CAN communication, use MUT-III main harness A to send simulated vehicle speed. If you connect MUT-III main harness B instead, the CAN communication does not function correctly.
MB991974 ABS check harness		ABS-ECU terminal voltage measurement
MB991223 Harness set MB991219 Inspection harness	General service tools	Wheel speed sensor output voltage measurement

TOOL

TOOL NUMBER AND NAME

SUPERSESSION

APPLICATION

MB991958

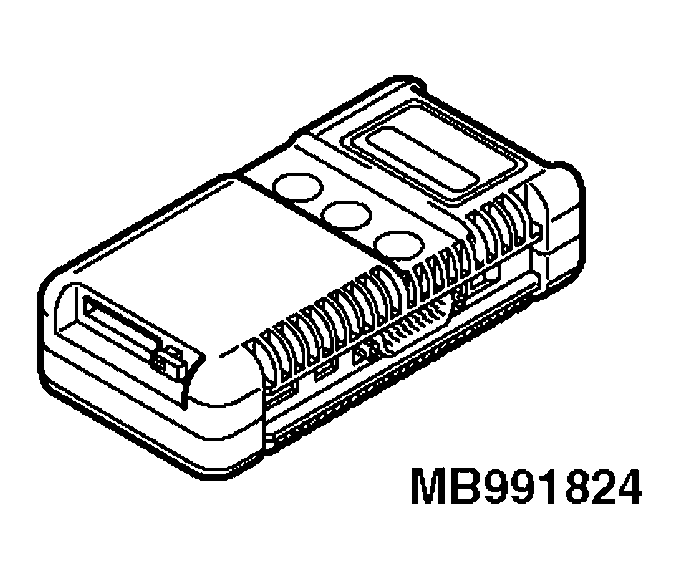

MB991824

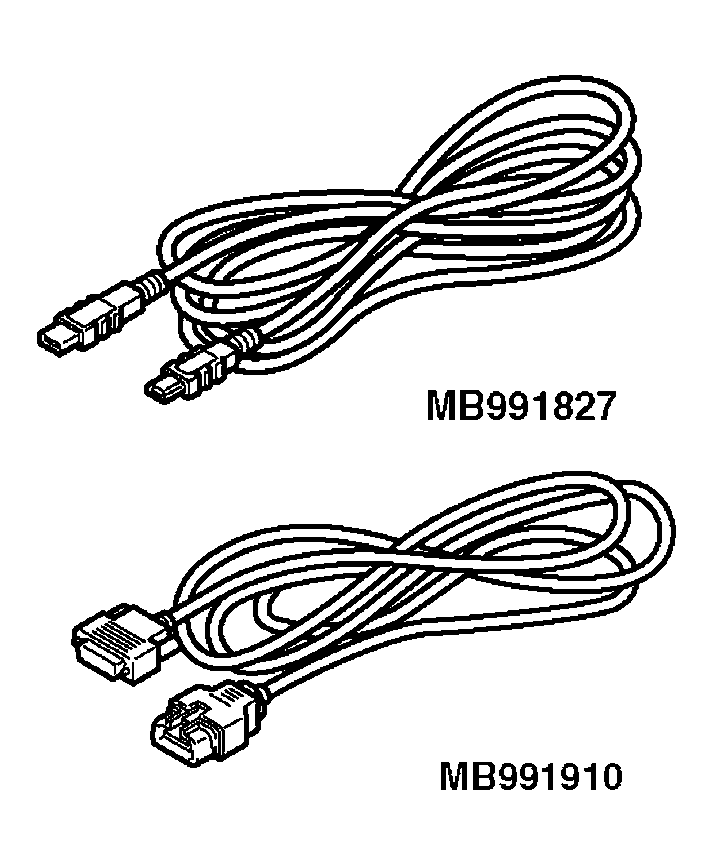

MB991827
MB991910

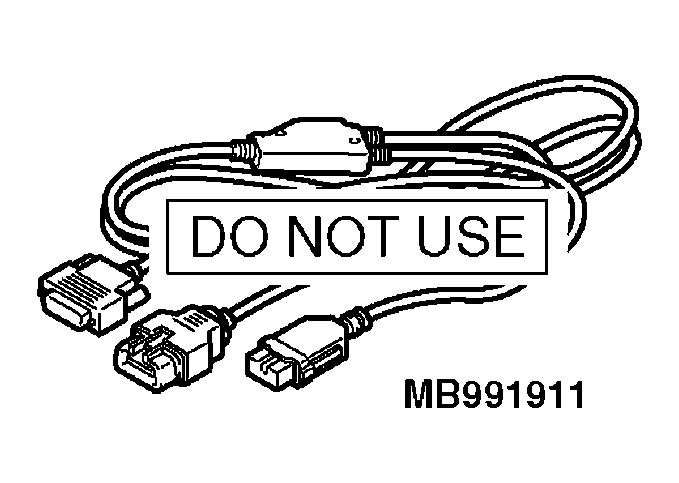

MB991911

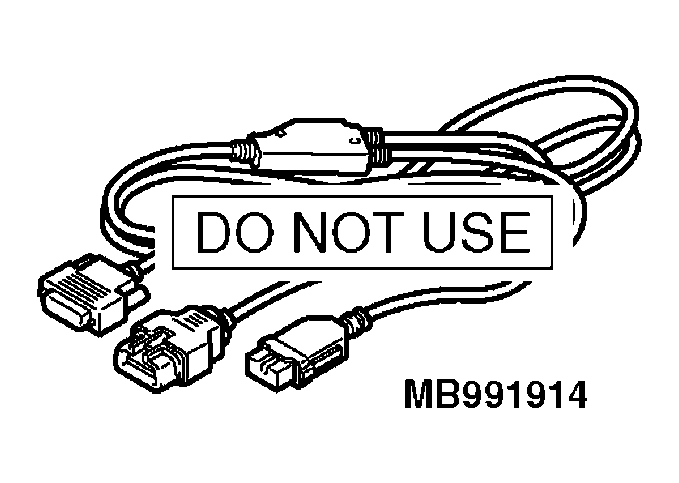

MB991914

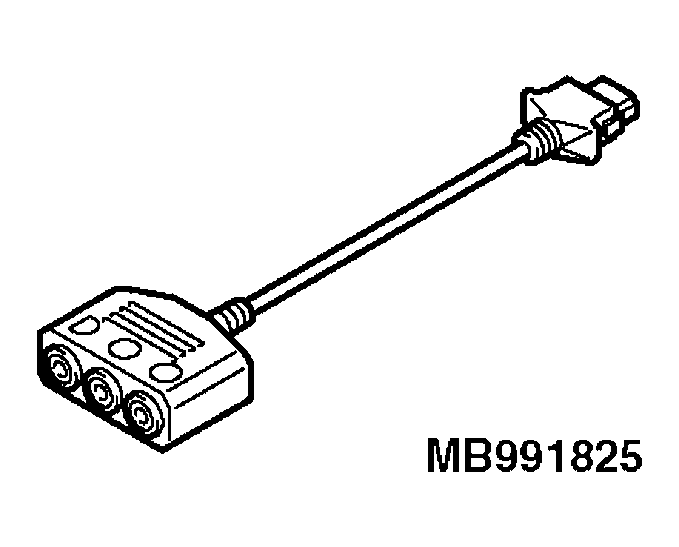

MB991825

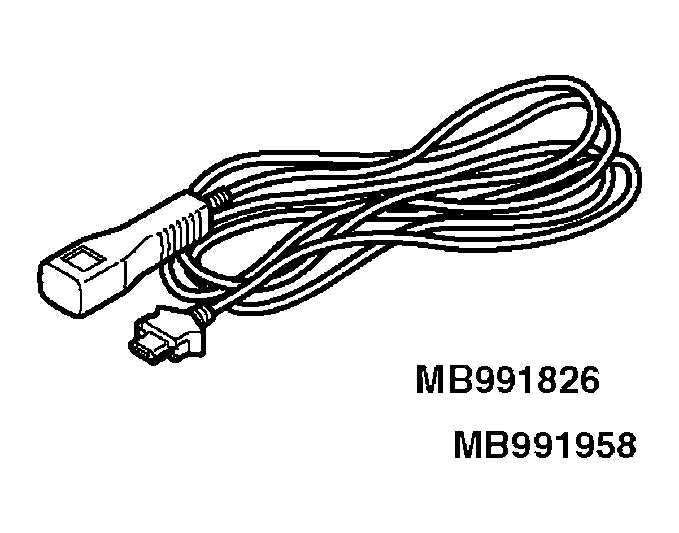

MB991826

MUT-III Sub Assembly

Vehicle Communication Interface (V.C.I.)
MUT-III USB Cable
MUT-III Main Harness A (Vehicles with CAN communication system)
MUT-III Main Harness B (Vehicles without CAN communication system)
MUT-III Main Harness C (for DaimlerChrysler models only)
MUT-III Adapter Harness
MUT-III Trigger Harness

MB991824-KIT

NOTE: MB991826 MUT-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.

Checking diagnostic trouble codes

CAUTION: For vehicles with CAN communication, use MUT-III main harness A to send simulated vehicle speed. If you connect MUT-III main harness B instead, the CAN communication does not function correctly.

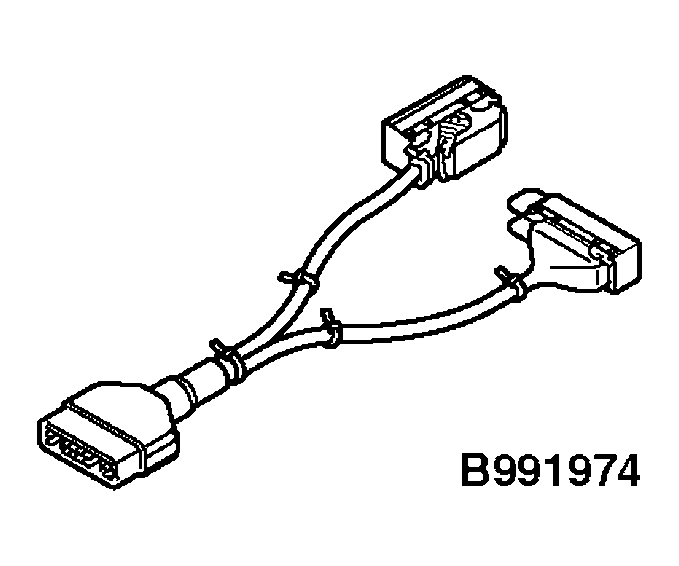

MB991974
ABS check harness

ABS-ECU terminal voltage measurement

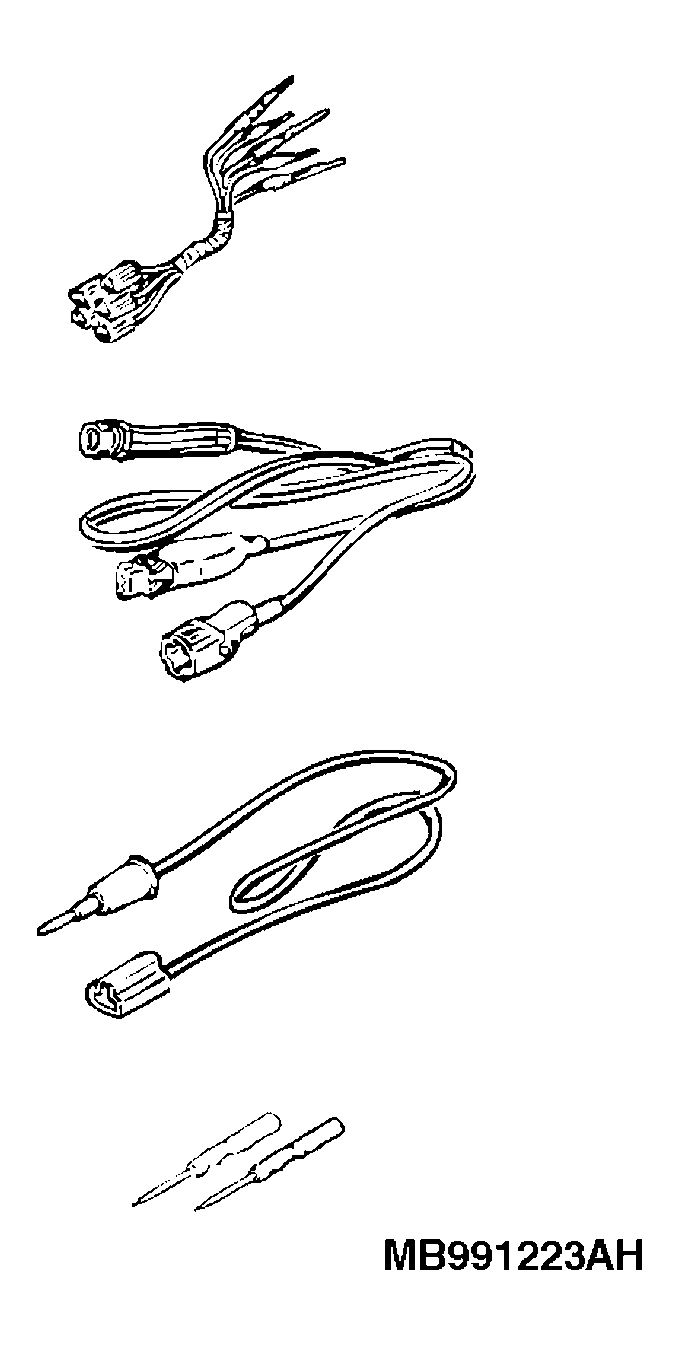

MB991223
Harness set

MB991219 Inspection harness

General service tools

Wheel speed sensor output voltage measurement
