Disassembly And Assembly

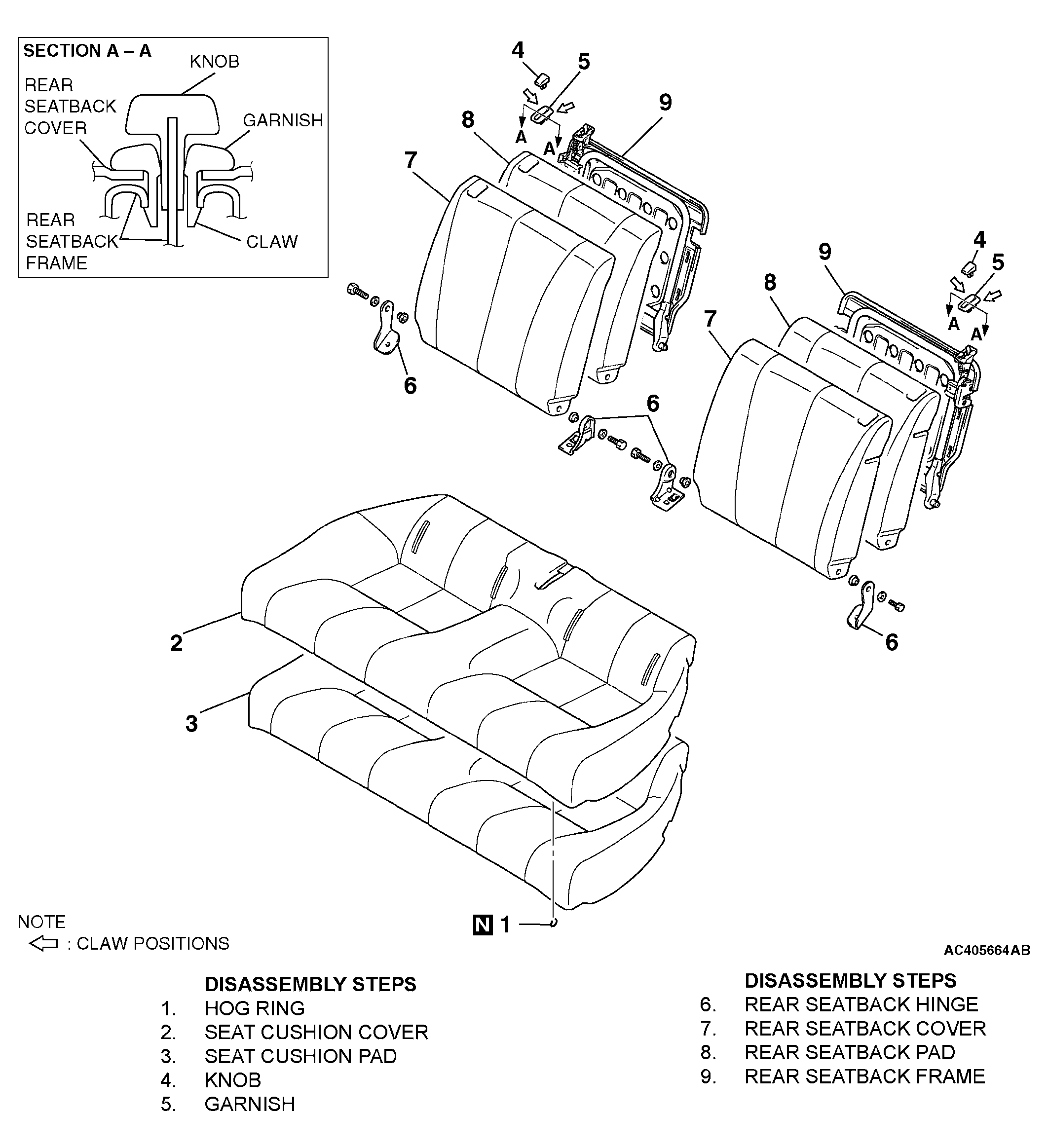

Fig 1: Rear Seat Assembly (Except Eclipse Spyder)
G04237819Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

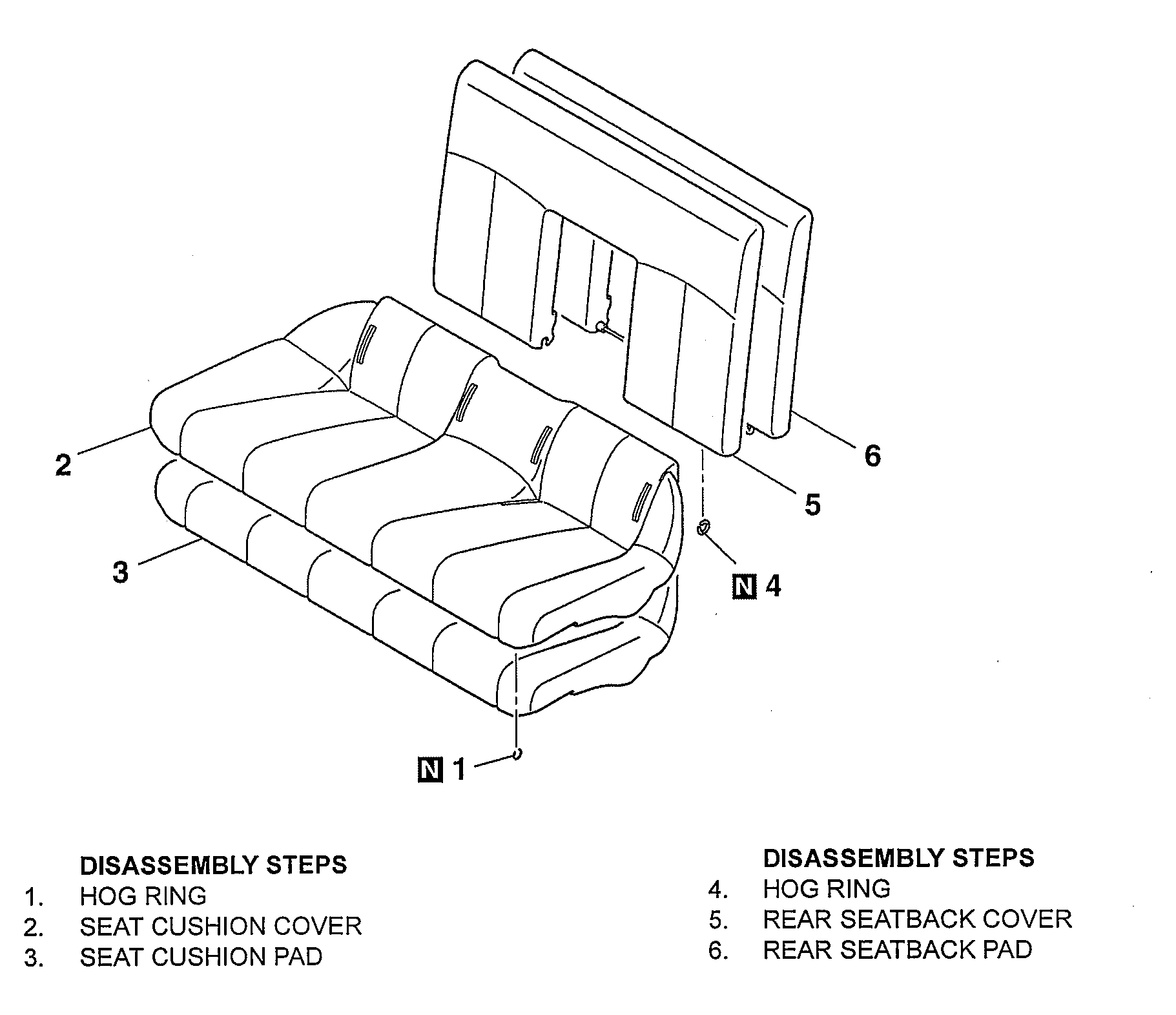

Fig 2: Rear Seat Assembly (Eclipse Spyder)
G00455156Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
