LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mitsubishi
>>
2009
>>
Eclipse GS, Standard
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Interior
>>
Floor Console Assembly
>>
Removal And Installation
Removal And Installation

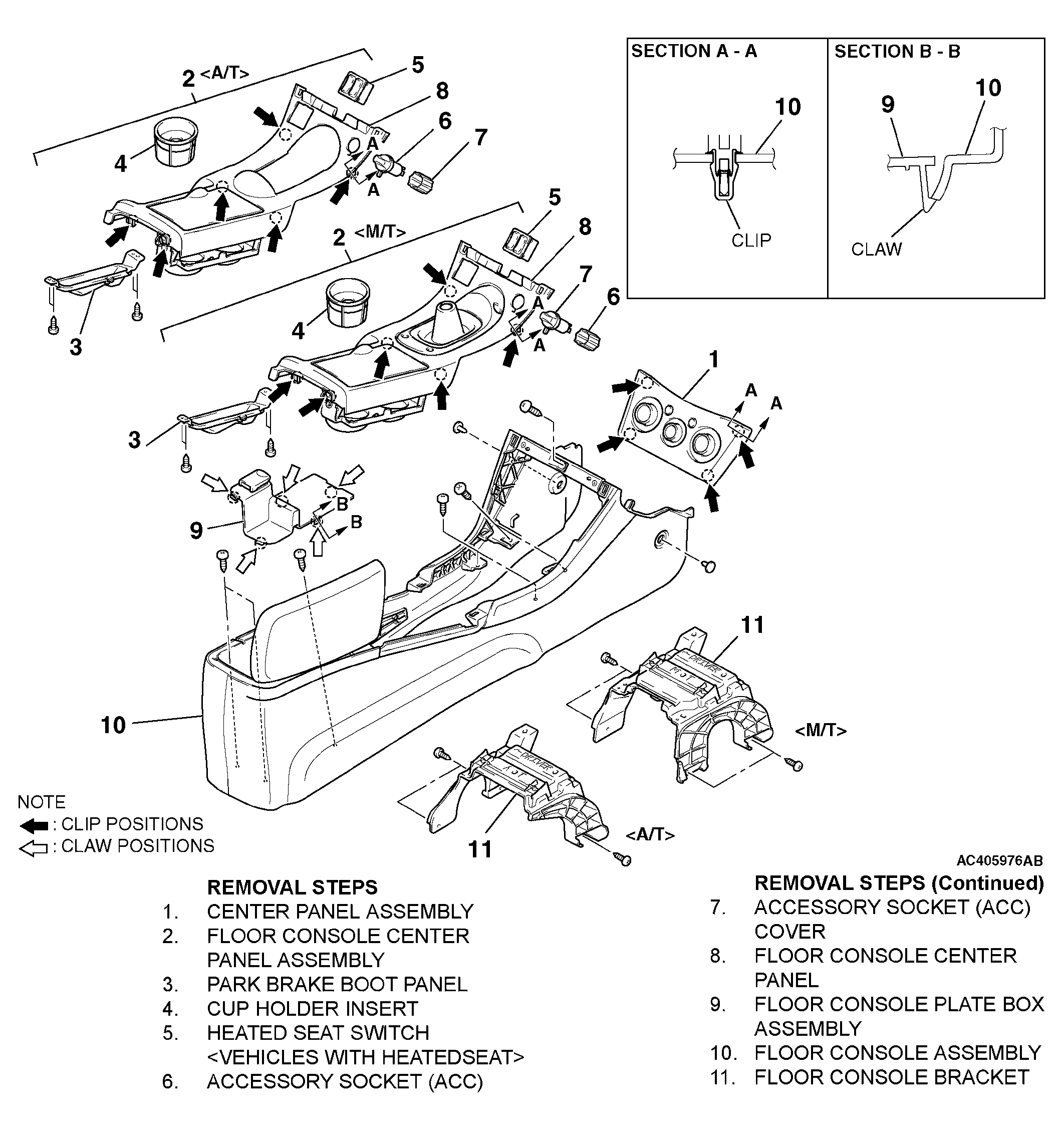

Fig 1: Removing & Installing Floor Console Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
