Eclipse GS, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Traction Control/Active Skid Control System
>>
TCL/ASC Diagnosis
>>
Symptom Procedures
>>
Inspection Procedure 4: Steering Wheel Sensor Power Supply Circuit System
>>
Notes
Inspection Procedure 4: Steering Wheel Sensor Power Supply Circuit System: Notes

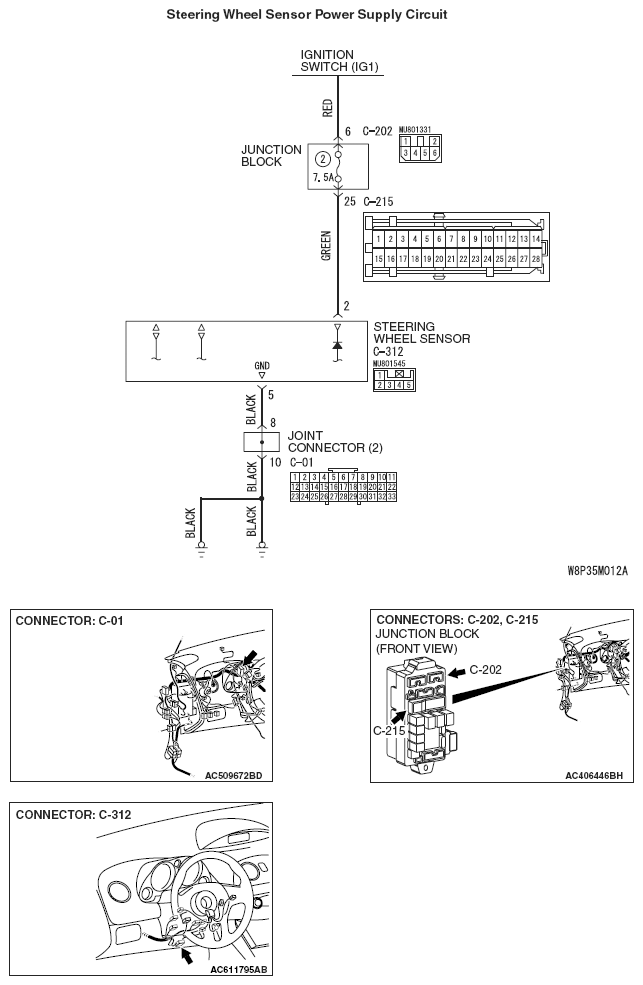

Fig 1: Steering Wheel Sensor Power Supply Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
