DTC C1340: Stoplight Switch: Notes

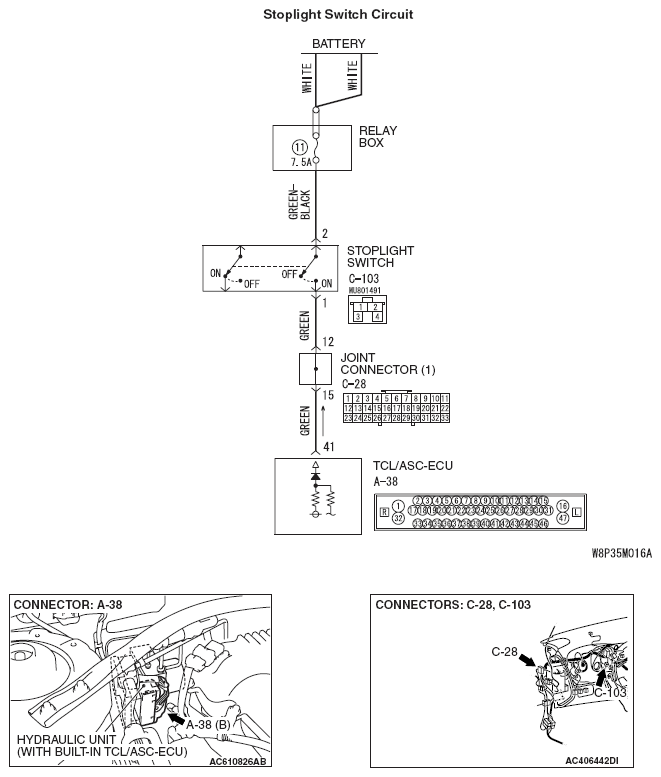

Fig 1: Stoplight Switch Circuit Diagram
G05435478Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.
