Traction Control/Active Skid Control System
>>
General Description
>>
System Configuration Diagram
System Configuration Diagram

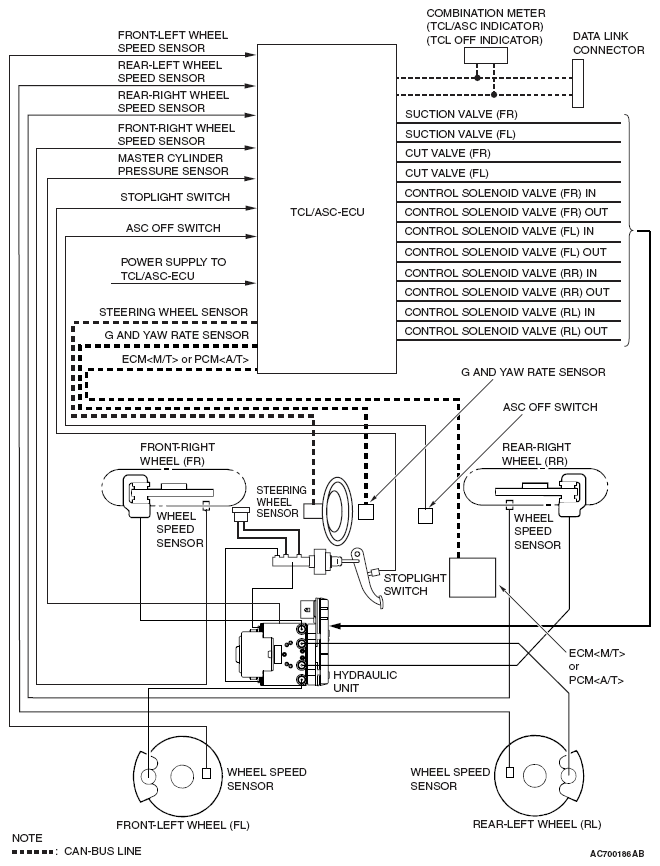

Fig 1: Traction Control/Active Skid Control System Configuration Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
