Traction Control System (TCL)
>>
Hydraulic Unit
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes
NOTE:
The ABS/TCL-ECU is integrated in the hydraulic unit.

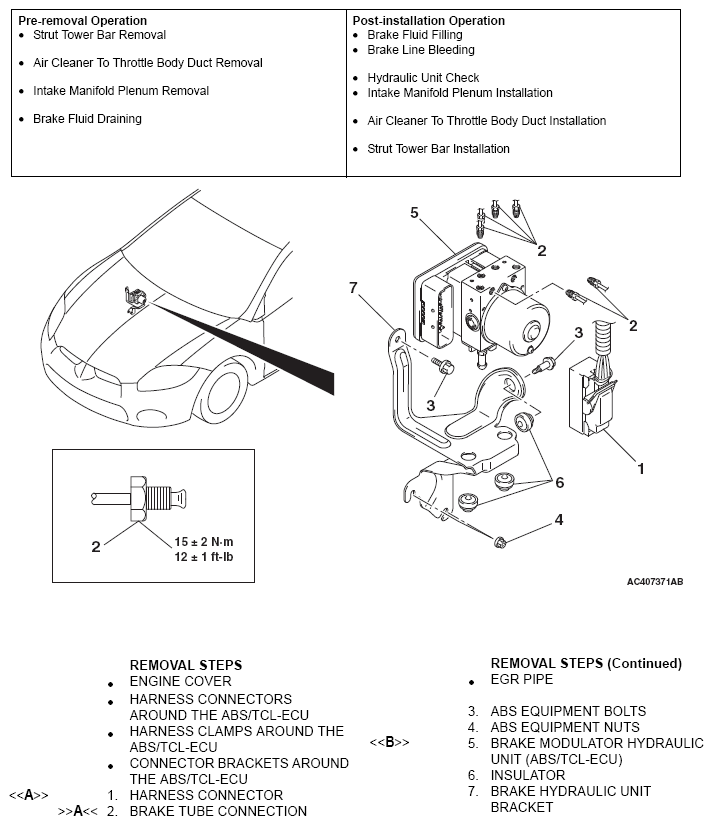

Fig 1: Identifying Hydraulic Unit Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
