Removal And Installation
Removal And Installation

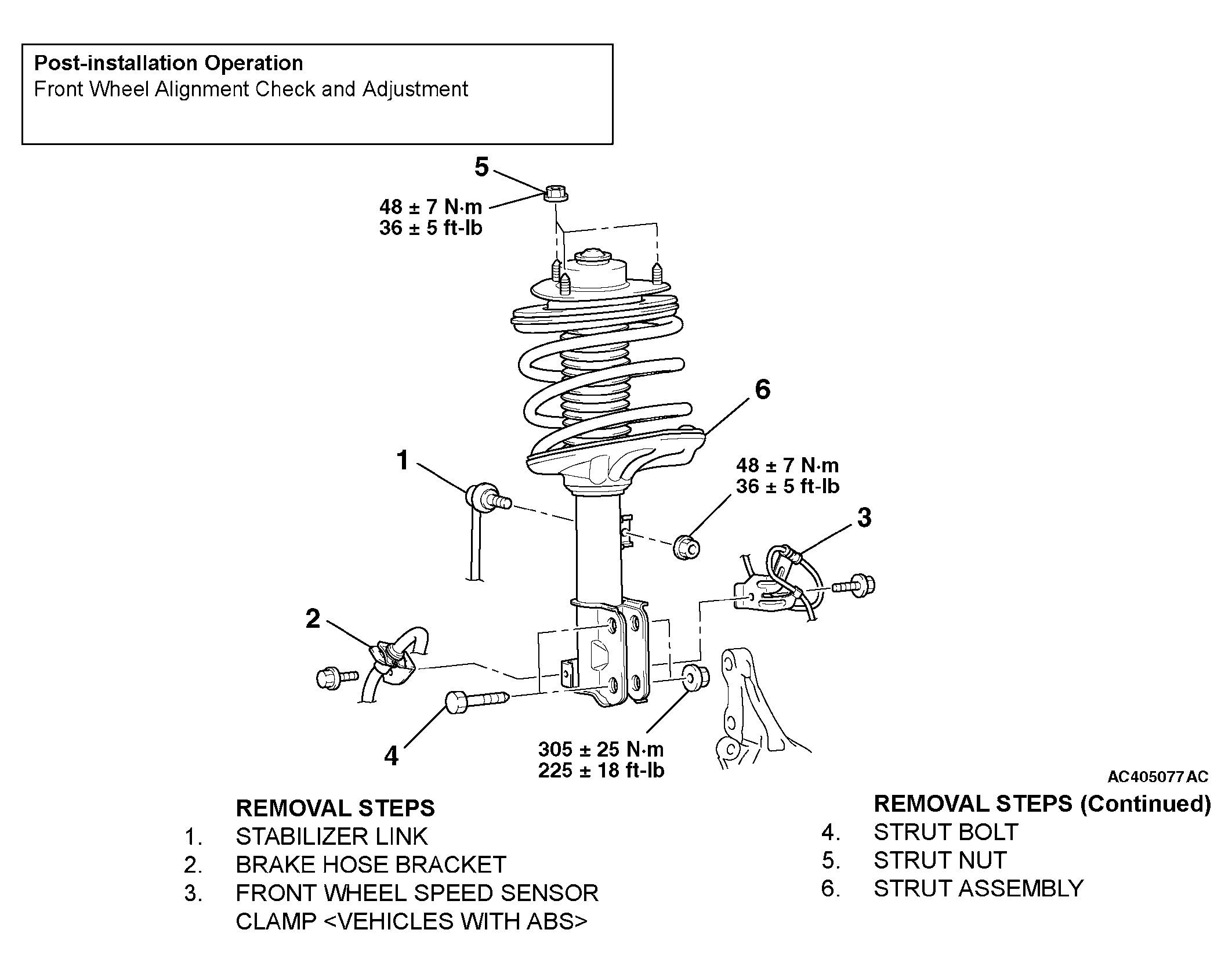

Fig 1: Removing/Installing Strut Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
