Home >> Mitsubishi >> 2009 >> Eclipse GS, Automatic >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Front Suspension >> Strut Assembly >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

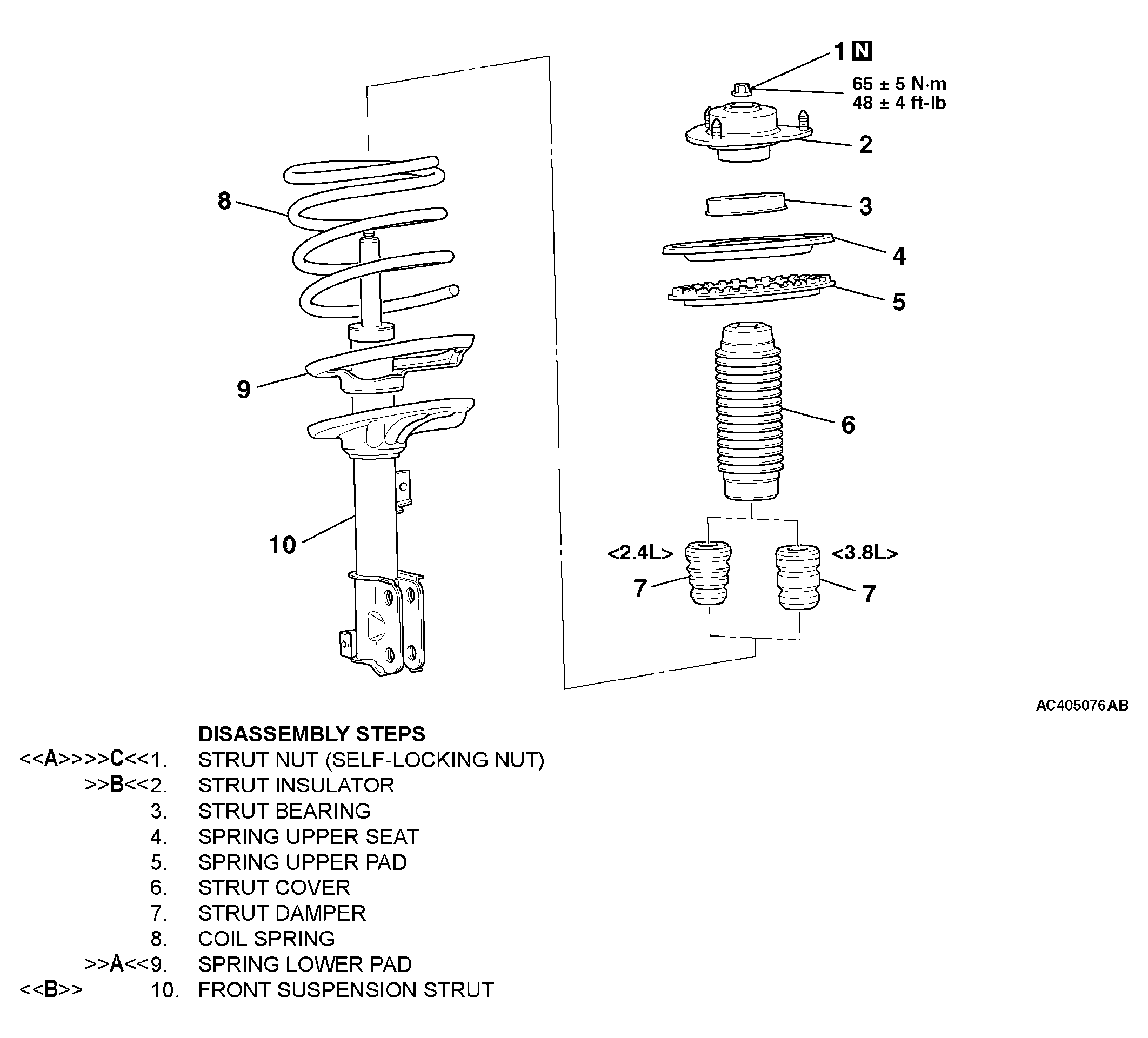

Fig 1: Removing/Installing Strut Springs With Torque Specifications

G04231831

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
